Metal Surface Treatment Wastewater: Sources, Pollutants and Treatment

Metal surface treatment processes are widely used to improve the corrosion resistance, durability, appearance and surface properties of metal products. However, processes such as electroplating, cleaning, pickling, etching, anodizing and chemical surface treatment can generate wastewater containing heavy metals, acids, alkalis, suspended solids and other process-related pollutants.

For manufacturers planning a metal surface treatment wastewater treatment system, understanding where the wastewater comes from and what pollutants it contains is the first step toward selecting the right treatment process.

The key challenge is that metal finishing wastewater is not always a single, consistent wastewater stream. Different production processes can generate wastewater with significantly different chemical characteristics. EPA guidance identifies wastewater from rinsing, cleaning, pickling, plating and etching operations as important sources in metal finishing facilities.

A properly designed treatment system should therefore be based on the actual wastewater characteristics, production process, required discharge standard and water reuse objectives.

1. What Is Metal Surface Treatment Wastewater?

Metal surface treatment wastewater refers to industrial wastewater generated during processes used to clean, modify, coat or otherwise treat the surface of metal products.

Common metal surface treatment operations include:

· Electroplating

· Electroless plating

· Pickling

· Etching

· Anodizing

· Phosphating

· Chromating

· Metal cleaning and degreasing

· Surface coating

· Rinsing after chemical treatment

EPA describes metal finishing as processes used to change the surface of an object to improve its appearance or durability, while electroplating is a related process that applies a metal coating through electrodeposition.

Depending on the production process, wastewater may be generated continuously from rinsing operations or periodically from spent process baths, tank cleaning and other production activities.

2. Where Does Metal Surface Treatment Wastewater Come From?

Understanding the source of wastewater is important because different wastewater streams may require different treatment approaches.

2.1 Cleaning and Degreasing Wastewater

Before plating or other surface treatment, metal components are often cleaned to remove oil, grease, dirt and other contaminants.

Cleaning wastewater may contain:

· Oils and grease

· Suspended solids

· Cleaning chemicals

· Alkaline substances

· Surfactants

· Dissolved metals

The characteristics depend on the cleaning chemicals and production process.

2.2 Plating Rinse Water

Rinsing is one of the major wastewater sources in metal finishing operations.

After a workpiece leaves a plating bath, residual chemicals can be carried into the rinse water. This phenomenon is commonly associated with chemical carryover or dragout.

The resulting rinse water may contain dissolved metals and process chemicals.

EPA pollution-prevention guidance identifies cleaning rinsewater, plating rinsewater and other process rinsewaters as typical wastewater sources in metal finishing operations.

2.3 Pickling and Etching Wastewater

Pickling and etching processes are used to remove oxides, scale or other surface contaminants.

Depending on the process, wastewater may contain:

· Acids

· Dissolved metals

· Suspended solids

· Chlorides

· Sulfates

· Nitrates

· Other process chemicals

Acidic wastewater may require neutralization and appropriate pretreatment before further treatment.

2.4 Spent Process Solutions

In addition to rinse water, metal finishing plants may periodically discharge spent or contaminated process solutions.

These streams can have much higher pollutant concentrations than normal rinse water and may therefore require separate collection or dedicated pretreatment.

2.5 Exhaust Scrubber Wastewater

If a metal finishing facility uses wet scrubbers for exhaust gas treatment, the resulting scrubber solution can also become part of the industrial wastewater stream.

This wastewater may contain pollutants captured from the exhaust gas and should be considered when designing the overall wastewater treatment system.

3. What Pollutants Are Commonly Found in Metal Surface Treatment Wastewater?

The exact wastewater composition varies according to the surface treatment process and chemicals used.

Common pollutants may include:

Heavy Metals

Typical metals associated with electroplating and metal finishing include:

· Chromium

· Nickel

· Copper

· Zinc

· Cadmium

· Lead

· Iron

· Aluminum

· Tin

· Silver and other precious metals

EPA documentation identifies toxic metals such as cadmium, copper, chromium, nickel, lead and zinc as important pollutants of concern in metal finishing wastewater.

Cyanide

Certain plating processes may use cyanide-containing chemistry.

If cyanide is present, it may require dedicated pretreatment rather than being sent directly into a conventional heavy-metal precipitation process. EPA guidance specifically notes that cyanide-bearing streams can interfere with common-metal treatment and may need to be treated separately.

Acids and Alkalis

Pickling, cleaning and plating processes can produce wastewater with high or low pH.

pH adjustment is therefore commonly an important part of industrial wastewater treatment.

Suspended Solids

Metal particles, precipitated chemicals and other solids can contribute to total suspended solids (TSS).

Sedimentation and filtration may be used to remove these solids after chemical treatment.

Oil and Grease

Cleaning and degreasing processes can introduce oil and grease into wastewater.

Depending on the concentration and wastewater characteristics, oil separation or other pretreatment may be required.

Other Chemical Constituents

Depending on the process, metal finishing wastewater can also contain compounds such as chlorides, sulfates, phosphates, fluorides, carbonates, borates and other process chemicals.

Therefore, wastewater analysis is important before selecting the final treatment process.

4. Why Is Metal Surface Treatment Wastewater Difficult to Treat?

One of the main challenges is wastewater variability.

A metal finishing factory may have several different production lines, plating baths and rinsing processes. As a result, wastewater can vary significantly in:

· pH

· Heavy metal concentration

· Flow rate

· Chemical composition

· Salt concentration

· Organic content

· Toxicity

· Temperature

For example, chromium-containing wastewater may require different pretreatment from copper- or nickel-containing wastewater.

This is why simply selecting a treatment system according to daily wastewater volume may not be sufficient.

The treatment process should consider both hydraulic conditions and wastewater chemistry.

5. Should Different Wastewater Streams Be Separated?

In many metal finishing applications, wastewater segregation can be an important design consideration.

Different wastewater streams may be collected separately according to their characteristics.

A possible classification may include:

Chromium-Containing Wastewater

Copper-Containing Wastewater

Nickel-Containing Wastewater

Cyanide-Containing Wastewater

Acidic / Alkaline Wastewater

General Metal-Containing Rinse Water

The exact segregation strategy depends on the customer's production process and wastewater analysis.

EPA guidance notes that wastestream segregation can support processes such as chromium treatment, cyanide treatment and metal recovery while potentially reducing the wastewater flow sent to the main treatment system.

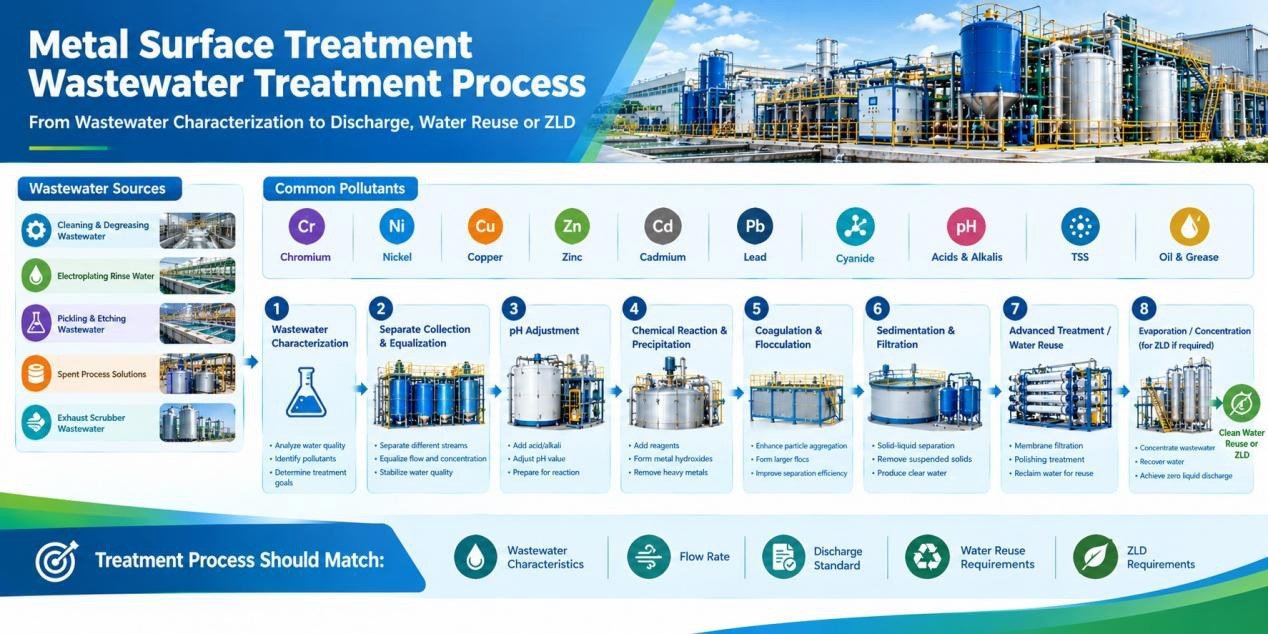

6. How Is Metal Surface Treatment Wastewater Treated?

A typical treatment process may include several stages.

A representative process is:

Wastewater Collection

↓

Wastewater Separation & Equalization

↓

pH Adjustment

↓

Chemical Reaction

↓

Coagulation & Flocculation

↓

Sedimentation

↓

Filtration

↓

Advanced Treatment / Water Reuse

↓

Evaporation / Concentration, if required

The actual configuration should be customized according to the wastewater characteristics and treatment objectives.

6.1 Equalization and Wastewater Collection

An equalization tank can help balance fluctuations in wastewater flow and pollutant concentration.

This is particularly useful for factories with batch production or significant variations in wastewater generation.

6.2 pH Adjustment

pH adjustment is commonly used to create appropriate conditions for subsequent chemical reactions and precipitation.

The required pH range depends on the target pollutants and selected treatment chemistry.

6.3 Chemical Reaction and Heavy Metal Precipitation

Chemical precipitation is a widely used approach for removing dissolved metals from metal finishing wastewater.

For common metal wastewater, chemical treatment can convert dissolved metals into less soluble compounds that can then be separated from the water.

EPA's electroplating and metal finishing guidance identifies hydroxide precipitation followed by sedimentation as a conventional treatment basis for common metals, while noting that certain streams, such as hexavalent chromium and cyanide-bearing wastewater, require appropriate pretreatment.

6.4 Coagulation and Flocculation

Coagulation and flocculation can help combine fine particles and precipitates into larger flocs.

This can improve subsequent solid-liquid separation.

6.5 Sedimentation and Filtration

After chemical treatment, the generated solids need to be separated from the treated water.

Depending on the project, treatment systems may use:

· Sedimentation tanks

· Clarifiers

· Pressure filters

· Multimedia filters

· Cartridge filters

· Other solid-liquid separation equipment

The selection depends on the required treated-water quality and process design.

7. When Is Advanced Treatment Required?

Conventional chemical treatment may be sufficient for some discharge applications.

However, additional treatment may be necessary when the customer requires:

· Higher water quality

· Water reuse

· Reduced dissolved solids

· High water recovery

· Zero Liquid Discharge

· Specific production-water quality

Depending on the project, advanced treatment may include membrane processes or evaporation technologies.

For example, reverse osmosis (RO) may be considered when treated water needs to be recovered for certain reuse applications, while evaporation or concentration technologies may be considered for projects with more demanding wastewater reduction or ZLD objectives.

The appropriate technology should be selected based on actual water-quality requirements rather than automatically adding advanced equipment to every project.

8. Metal Surface Treatment Wastewater and Water Reuse

Water reuse is becoming an important consideration for many industrial wastewater projects.

Instead of treating wastewater only for final discharge, manufacturers may also consider recovering treated water for:

· Rinsing

· Cleaning

· Cooling

· Process water

· Other suitable plant applications

The required treatment level depends on the intended reuse application.

For example, water used for general utility purposes may have different requirements from water returned to a sensitive production process.

Therefore, the final reuse water quality should be defined before the treatment system is designed.

9. When Should You Consider Zero Liquid Discharge?

Zero Liquid Discharge (ZLD) is a more advanced wastewater management strategy designed to minimize or eliminate liquid wastewater discharge.

A typical ZLD-oriented system may combine:

Pretreatment → Heavy Metal Removal → Filtration → Water Recovery → Concentration → Evaporation → Residual Solid Management

ZLD may be considered when:

· Local regulations require very low or zero liquid discharge

· Water reuse is a major project objective

· Freshwater availability is limited

· Wastewater disposal is difficult or expensive

· The factory wants to maximize water recovery

However, ZLD systems can require additional equipment, energy and operational management.

Therefore, ZLD should be evaluated based on the project's technical and economic requirements.

10. How to Choose a Metal Surface Treatment Wastewater Treatment System

When evaluating wastewater treatment equipment suppliers, buyers should consider more than equipment capacity and purchase price.

1. Wastewater Characteristics

Ask whether the supplier has reviewed actual wastewater analysis.

Important information may include:

· pH

· Flow rate

· Chromium

· Nickel

· Copper

· Zinc

· Other heavy metals

· COD

· TSS

· Conductivity / TDS

· Cyanide, if applicable

· Oil and grease

2. Production Process

The supplier should understand how wastewater is generated.

Provide information about:

· Plating processes

· Cleaning

· Pickling

· Etching

· Rinsing

· Production capacity

· Operating hours

3. Required Discharge Standard

Clearly define the required final water quality and the applicable local discharge requirements.

Metal finishing wastewater requirements vary according to the jurisdiction and discharge route, so the treatment system should be designed against the project's actual regulatory requirements. EPA's U.S. metal finishing and electroplating categories, for example, establish different requirements depending on the regulated operation and discharge context.

4. Water Reuse Requirements

If treated water will be reused, define:

· Where the water will be reused

· Required water quality

· Target recovery rate

· Whether membrane treatment is required

5. ZLD Requirements

If zero liquid discharge is required, identify this requirement at the beginning of the project.

This can significantly influence the process configuration and equipment selection.

6. Sludge Management

Heavy metal treatment generally transfers pollutants from the wastewater into a concentrated solid phase.

Therefore, buyers should also ask about:

· Sludge quantity

· Sludge dewatering

· Sludge storage

· Sludge disposal

· Potential metal recovery

Sludge management should be considered as part of the complete wastewater treatment solution rather than as a separate issue.

11. What Information Should You Send to a Wastewater Treatment Manufacturer?

If you are requesting a technical proposal for a metal surface treatment wastewater treatment system, providing the following information can help the supplier evaluate your project more accurately.

Project Information

· Country and project location

· New plant or existing facility

· Industry

· Production process

· Available installation space

Wastewater Information

· Daily flow rate

· Peak flow rate

· Wastewater sources

· pH

· Heavy metal concentrations

· COD

· TSS

· Conductivity / TDS

· Other known pollutants

Treatment Requirements

· Required discharge standard

· Water reuse requirements

· Target water recovery

· ZLD requirements

· Sludge disposal requirements

The more complete the information, the easier it is to develop a treatment process that matches the actual project conditions.

12. Customized Metal Surface Treatment Wastewater Treatment Solutions

There is no universal treatment configuration for every metal surface treatment factory.

A small electroplating workshop, a large automotive component manufacturer and a gravure plate roller manufacturer may all generate metal-containing wastewater, but their wastewater characteristics and treatment objectives can be very different.

For this reason, a customized approach should consider:

· Production Process

· Wastewater Characteristics

· Flow Rate

· Required Water Quality

· Water Reuse Requirements

· ZLD Requirements

· Customized Wastewater Treatment System

HJ Environmental provides customized industrial wastewater treatment solutions for electroplating and metal surface treatment applications.

Depending on the project, the treatment process may combine wastewater separation, physicochemical treatment, chemical precipitation, filtration, water reuse and evaporation.

One of our projects for a gravure plate roller manufacturer involved separate collection and treatment of chromium-, copper- and nickel-containing wastewater, followed by physical and chemical reaction, batch precipitation, filtration, reclaimed-water reuse and evaporation. The project achieved the customer's Zero Liquid Discharge objective, with stable treated-water quality meeting the required standards.

Conclusion

Metal surface treatment wastewater can contain heavy metals, acids, alkalis, suspended solids, oils, cyanide and other process-related pollutants.

The wastewater sources may include cleaning, rinsing, pickling, plating, etching and other surface-treatment operations. Because different production processes generate different wastewater characteristics, treatment systems should be designed according to the actual wastewater rather than based on flow rate alone.

A properly designed metal surface treatment wastewater treatment system may combine wastewater segregation, equalization, pH adjustment, chemical reaction, precipitation, coagulation and flocculation, sedimentation, filtration and advanced treatment.

For facilities requiring higher water recovery, additional technologies such as membrane treatment or evaporation may be considered.

The key is to match the treatment process with the wastewater characteristics, discharge requirements, water reuse objectives and site conditions.

Looking for a Metal Surface Treatment Wastewater Treatment System?

If your factory generates wastewater from electroplating, metal finishing, pickling, cleaning or other surface treatment processes, HJ Environmental can evaluate your project requirements and develop a customized treatment approach.

Please send us:

· Wastewater analysis

· Wastewater flow rate

· Production process

· Main metals and pollutants

· Required discharge standard

· Water reuse requirements

· ZLD requirements, if applicable

· Project location

Contact us for a customized metal surface treatment wastewater treatment solution.
