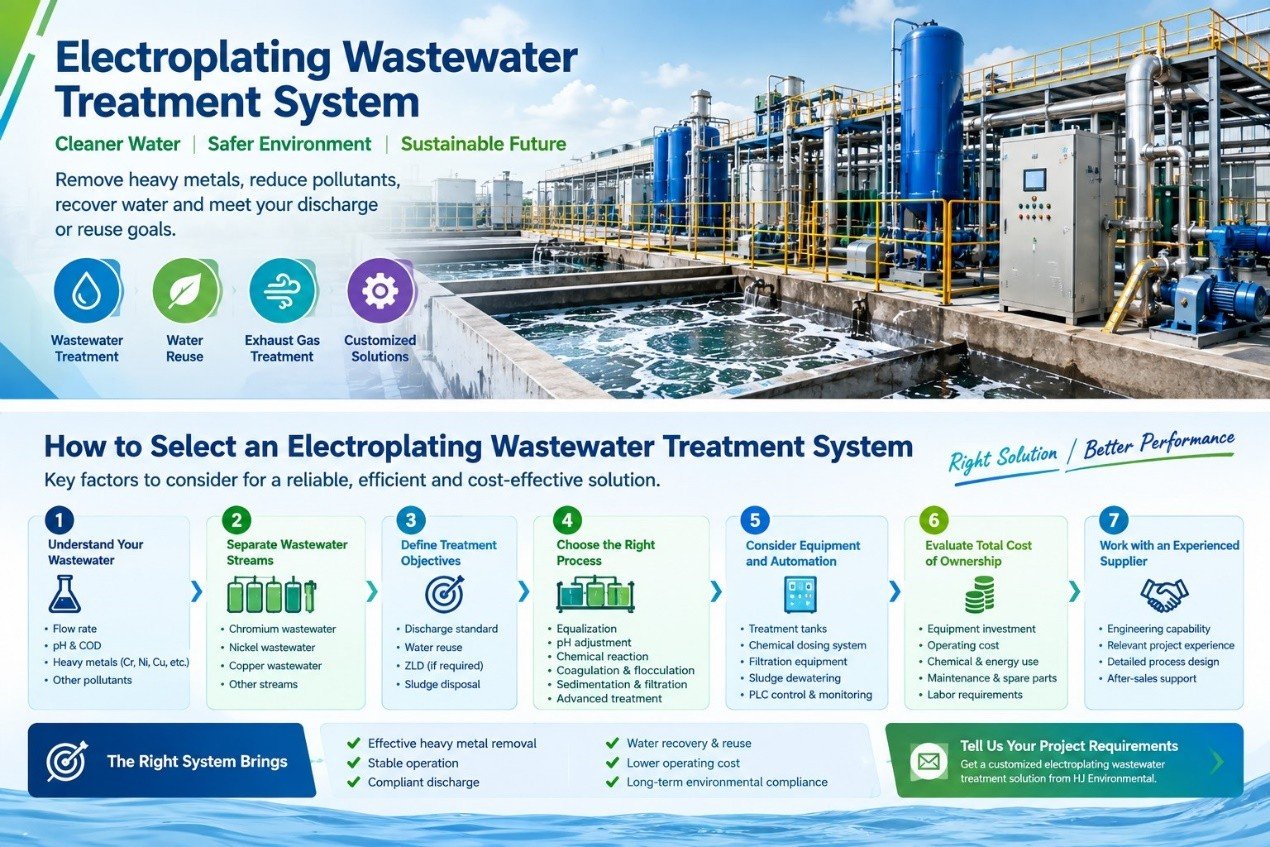

How to Select an Electroplating Wastewater Treatment System

Choosing the right electroplating wastewater treatment system is an important decision for any metal finishing or electroplating facility. The treatment system must not only remove heavy metals and other pollutants, but also operate reliably under changing wastewater conditions, meet the required discharge limits and, where necessary, support water reuse or zero liquid discharge (ZLD).

However, there is no single treatment process that is suitable for every electroplating plant.

Electroplating wastewater can contain different metals and chemicals depending on the production process, plating chemicals, rinsing operations and production capacity. Typical pollutants may include chromium, nickel, copper, zinc, cyanide, suspended solids, acids, alkalis and other process-related contaminants.

For this reason, selecting an electroplating wastewater treatment system should begin with wastewater characterization and treatment objectives, rather than simply choosing equipment based on wastewater volume.

1. Understand Your Electroplating Wastewater First

The first step in selecting a treatment system is to understand what is actually present in the wastewater.

Different production processes can generate significantly different wastewater streams. For example, chrome plating wastewater may require different pretreatment from nickel or copper plating wastewater.

Important parameters to evaluate include:

· Wastewater flow rate

· pH

· Chromium and other heavy metals

· Nickel

· Copper

· Zinc

· Cyanide, where applicable

· COD and other organic pollutants

· Suspended solids

· Conductivity or total dissolved solids

· Presence of complexing agents

· Wastewater temperature

· Production and rinsing conditions

Electroplating wastewater is also often generated from different sources, such as rinse water, cleaning processes, plating operations and periodic tank cleaning.

Therefore, treating all wastewater as one uniform stream may not always be the best approach.

2. Consider Wastewater Separation Before Treatment

Wastewater segregation is an important consideration when designing an electroplating wastewater treatment system.

Certain wastewater streams may require dedicated pretreatment before they are combined with other streams. For example, chromium-containing wastewater, cyanide-bearing wastewater and wastewater containing complexed metals may require different treatment conditions.

Separating wastewater streams can help the treatment system respond more effectively to different chemical characteristics.

A typical treatment strategy may include:

Wastewater Collection → Stream Separation → Pretreatment → pH Adjustment → Chemical Reaction → Coagulation & Flocculation → Sedimentation → Filtration → Advanced Treatment / Reuse

The actual process should be determined according to the wastewater analysis and the required final water quality.

3. Check Which Heavy Metals Need to Be Removed

Heavy metal removal is one of the main functions of an electroplating wastewater treatment system.

Common metals associated with electroplating wastewater include:

Chromium

Chromium may exist in different chemical forms, and chromium-containing wastewater may require specific pretreatment before conventional precipitation.

Nickel

Nickel is commonly associated with nickel plating and may require controlled chemical precipitation and solid-liquid separation.

Copper

Copper wastewater can be generated by copper plating and related metal-finishing processes and may require dedicated or combined heavy-metal treatment.

Zinc

Zinc can also be present in plating and surface-treatment wastewater and may require controlled pH conditions for effective precipitation.

The exact treatment method should be selected according to the actual chemical form, concentration and interaction between contaminants.

4. Define Your Required Discharge Standard

Before purchasing treatment equipment, clearly define where the treated wastewater will go.

The required treatment system can be very different depending on whether the treated water will be:

· Discharged to a municipal sewer

· Discharged directly to the environment

· Reused within the factory

· Used as process or rinsing water

· Further concentrated for zero liquid discharge

The applicable discharge requirements depend on the project location and receiving system. Therefore, overseas buyers should confirm the applicable local or national wastewater discharge requirements before finalizing the process design.

A good equipment supplier should be able to design the treatment system around the customer's specified water-quality targets rather than offering the same configuration for every project.

5. Determine Whether Water Reuse Is Required

Many electroplating plants are increasingly interested in reducing freshwater consumption and recovering treated wastewater for reuse.

If water reuse is required, conventional heavy-metal precipitation alone may not be sufficient.

Depending on the required reuse quality, additional treatment technologies may be considered, such as:

· Multimedia filtration

· Cartridge filtration

· Ultrafiltration

· Reverse osmosis (RO)

· Ion exchange

· Other polishing technologies

The appropriate configuration depends on the target reuse application and treated-water quality.

For example, if treated water is intended for production rinsing, the water-quality requirements may be considerably different from those for simple discharge.

Therefore, water reuse should be considered during the initial system design, rather than added as an afterthought.

6. Decide Whether Zero Liquid Discharge Is Necessary

Some electroplating facilities have more demanding wastewater management requirements and may require a Zero Liquid Discharge (ZLD) solution.

A ZLD system aims to minimize or eliminate liquid wastewater discharge by combining wastewater treatment, water recovery and concentration technologies.

A possible treatment configuration may include:

Heavy Metal Removal → Filtration → Membrane Treatment → Concentration → Evaporation → Residual Solids

However, ZLD is significantly more complex than a conventional discharge treatment system.

It normally requires additional investment, energy consumption, equipment and operational management. Therefore, ZLD should be selected when it is technically and economically justified by the project requirements.

7. Consider the Wastewater Flow Rate and Production Schedule

Wastewater volume is another critical factor when selecting treatment equipment.

The system should be designed according to factors such as:

· Average wastewater flow

· Peak wastewater flow

· Production hours per day

· Number of shifts

· Batch or continuous production

· Rinsing frequency

· Periodic wastewater discharge

· Future production expansion

For example, a facility operating continuously may require a different hydraulic design from a plant that generates wastewater mainly during specific production periods.

The treatment system should therefore be sized based on actual operating conditions instead of simply using the average daily wastewater volume.

8. Compare More Than the Equipment Purchase Price

For industrial wastewater treatment projects, the lowest equipment price does not necessarily mean the lowest total project cost.

Overseas buyers should evaluate the total cost of ownership, including:

· Initial equipment investment

· Chemical consumption

· Electricity consumption

· Sludge generation

· Sludge disposal

· Membrane replacement

· Spare parts

· Labor requirements

· Maintenance

· Automation level

· Installation and commissioning

· Future expansion

For electroplating wastewater treatment, sludge management is particularly important because heavy metals removed from wastewater are concentrated into treatment sludge.

A reliable system should therefore consider sludge collection, concentration and dewatering as part of the overall treatment process.

9. Consider Automation and Operation Requirements

Another important question is:

Who will operate and maintain the system?

If the customer has experienced environmental engineers and operators, a manually operated system may be acceptable for some applications.

For facilities with limited technical staff, a higher level of automation may be preferable.

Depending on project requirements, an electroplating wastewater treatment system may incorporate:

· Automatic pH control

· ORP control

· Automatic chemical dosing

· Liquid-level monitoring

· Pump interlocks

· Alarm systems

· PLC control

· Automatic filtration

· Online monitoring

The appropriate automation level should balance reliability, project budget and operator capabilities.

10. Evaluate the Supplier's Engineering Capability

Choosing an electroplating wastewater treatment supplier is not simply a matter of comparing product catalogs.

A qualified supplier should be able to understand:

1. Your production process

2. Wastewater sources

3. Pollutant characteristics

4. Required discharge standard

5. Water reuse requirements

6. Available installation space

7. Operating conditions

8. Future production plans

The supplier should also be able to explain why a particular treatment process has been selected.

A useful proposal should clearly show:

· Process flow

· Main treatment stages

· Equipment list

· Design capacity

· Chemical dosing system

· Sludge treatment method

· Filtration system

· Water reuse system, if required

· Control system

· Utility requirements

· Installation requirements

This information allows buyers to compare different technical proposals more effectively.

11. What Information Should You Provide When Requesting a Quote?

If you are looking for an electroplating wastewater treatment system, providing sufficient project information will help the supplier develop a more accurate proposal.

We recommend preparing the following information:

Basic Project Information

· Country and project location

· Industry and production type

· New project or existing factory

· Available installation space

Wastewater Information

· Wastewater flow rate

· Operating hours

· Wastewater sources

· pH

· Heavy metal concentrations

· COD

· TSS

· Conductivity / TDS

· Other known pollutants

Treatment Requirements

· Required discharge standard

· Water reuse requirements

· Desired water recovery rate

· ZLD requirement, if applicable

· Sludge disposal requirements

Production Information

· Plating processes

· Main metals used

· Rinsing process

· Production capacity

· Expected future expansion

The more complete the project information, the more accurately the treatment process and equipment can be designed.

12. Why Customized Design Is Important

An electroplating wastewater treatment system should be designed according to the specific wastewater characteristics and operating conditions of each facility.

For example, two electroplating plants may have similar wastewater flow rates but completely different pollutant compositions.

One facility may mainly generate chromium and nickel wastewater, while another may generate mixed chromium, copper, nickel and zinc wastewater. One plant may require only compliant discharge, while another may need high water recovery or ZLD.

Therefore, a customized treatment process is usually more appropriate than a standard one-size-fits-all system.

13. Our Approach to Electroplating Wastewater Treatment

We provide industrial wastewater treatment solutions for applications including electroplating and metal surface treatment.

Our approach is based on evaluating the customer's wastewater characteristics, production process, treatment objectives and site conditions before determining the appropriate treatment configuration.

Depending on the project, the treatment process may include:

Wastewater Separation → Equalization → Physicochemical Treatment → Chemical Reaction → Precipitation → Solid-Liquid Separation → Filtration → Water Reuse → Evaporation / ZLD

The final configuration is customized according to the actual wastewater analysis and project requirements.

For example, one of our electroplating wastewater treatment projects for a gravure plate roller manufacturer involved separate treatment of chromium-, copper- and nickel-containing wastewater, followed by physicochemical reaction, batch precipitation, filtration, reclaimed-water reuse and evaporation to achieve a zero-liquid-discharge objective.

This type of project demonstrates why wastewater separation and process selection should be considered together when designing a metal-finishing wastewater treatment system.

14. Final Checklist for Selecting an Electroplating Wastewater Treatment System

Before choosing a supplier, ask the following questions:

· Has the supplier reviewed my wastewater analysis?

· Can different wastewater streams be treated separately?

· Can the system handle chromium, nickel, copper and other relevant metals?

· Is pretreatment required for specific pollutants?

· What discharge standard is the system designed for?

· Is water reuse required?

· Is ZLD technically and economically necessary?

· How much sludge will the system generate?

· What are the expected chemical and energy requirements?

· What level of automation is included?

· Can the system be expanded in the future?

· Does the supplier have relevant industrial project experience?

· Can the supplier provide a detailed process flow and equipment list?

Conclusion

Selecting an electroplating wastewater treatment system should be based on more than wastewater capacity or equipment price.

The most important factors are wastewater characteristics, pollutant types, stream separation, required discharge standards, water reuse objectives, ZLD requirements, operating conditions, automation and total cost of ownership.

A properly designed system can provide more stable wastewater treatment performance while creating opportunities for water reuse and more efficient resource management.

If you are planning a new electroplating wastewater treatment project, upgrading an existing system or looking for a water reuse solution, we can evaluate your project requirements and develop a customized treatment approach.

Request a Customized Electroplating Wastewater Treatment Solution

Please share us:

· Wastewater analysis

· Flow rate

· Production process

· Main plating chemicals and metals

· Required discharge standard

· Water reuse requirements

· ZLD requirements, if applicable

· Project location

Contact us for a customized electroplating wastewater treatment system proposal.
