Electroplating Wastewater Treatment System: A Complete Guide

Electroplating is widely used to improve the corrosion resistance, appearance, hardness and functional performance of metal products. However, the electroplating process can generate wastewater containing heavy metals, acids, alkalis, suspended solids and other chemical pollutants.

An electroplating wastewater treatment system is designed to remove these pollutants and produce treated water suitable for discharge, reuse or further treatment, depending on the project requirements.

For electroplating factories, metal finishing plants and surface treatment facilities, selecting the right wastewater treatment process is important for stable operation, environmental compliance and water management.

This guide explains the main components, treatment processes and design considerations of an industrial electroplating wastewater treatment system.

1. What Is an Electroplating Wastewater Treatment System?

An electroplating wastewater treatment system is an industrial wastewater treatment solution designed specifically for wastewater generated by electroplating and metal surface treatment processes.

Unlike conventional domestic wastewater, electroplating wastewater can contain different types of dissolved metals and chemical pollutants. The wastewater characteristics may also vary significantly between different production lines.

Common pollutants may include:

· Chromium

· Nickel

· Copper

· Zinc

· Other heavy metals

· Acids

· Alkalis

· Suspended solids

· Organic additives

A complete treatment system may combine several processes, such as:

Wastewater Collection → Equalization → pH Adjustment → Chemical Reaction → Coagulation & Flocculation → Sedimentation → Filtration → Advanced Treatment → Discharge or Water Reuse

For projects requiring higher water recovery, additional concentration or evaporation processes may be incorporated.

2. Where Does Electroplating Wastewater Come From?

Electroplating wastewater can be generated at different stages of a metal finishing production line.

Typical sources include:

Rinsing Wastewater

Rinsing is one of the main sources of wastewater in electroplating operations. Water is used to rinse workpieces after cleaning, pickling, activation or plating.

The resulting wastewater can contain residual chemicals and dissolved metals.

Plating Process Wastewater

Different plating processes may introduce different metal pollutants into the wastewater.

For example, depending on the production process, wastewater may contain chromium, nickel, copper or zinc.

Cleaning and Degreasing Wastewater

Cleaning and degreasing processes can introduce oils, suspended solids, cleaning chemicals and other contaminants.

Acid and Alkali Wastewater

Pickling, activation and surface preparation processes may generate acidic or alkaline wastewater.

Because wastewater sources can have different characteristics, source separation and wastewater classification can be an important part of the treatment design.

3. Why Is Electroplating Wastewater Difficult to Treat?

The main challenge is that electroplating wastewater is often chemically complex.

Multiple Heavy Metals

A single factory may generate wastewater containing several different metals.

Different metals may require different chemical treatment conditions.

Variable Wastewater Characteristics

Wastewater quality can change according to production schedules, product types, chemicals used and rinsing conditions.

Different Wastewater Streams

Combining all wastewater streams immediately may make treatment more complicated.

Separate collection can allow the treatment process to be better matched to each wastewater type.

Sludge Generation

Chemical precipitation produces metal-containing sludge that must be properly collected, dewatered and handled.

Water Reuse Requirements

Some factories want to recover treated wastewater for production use instead of simply discharging it.

This can require additional filtration or advanced treatment.

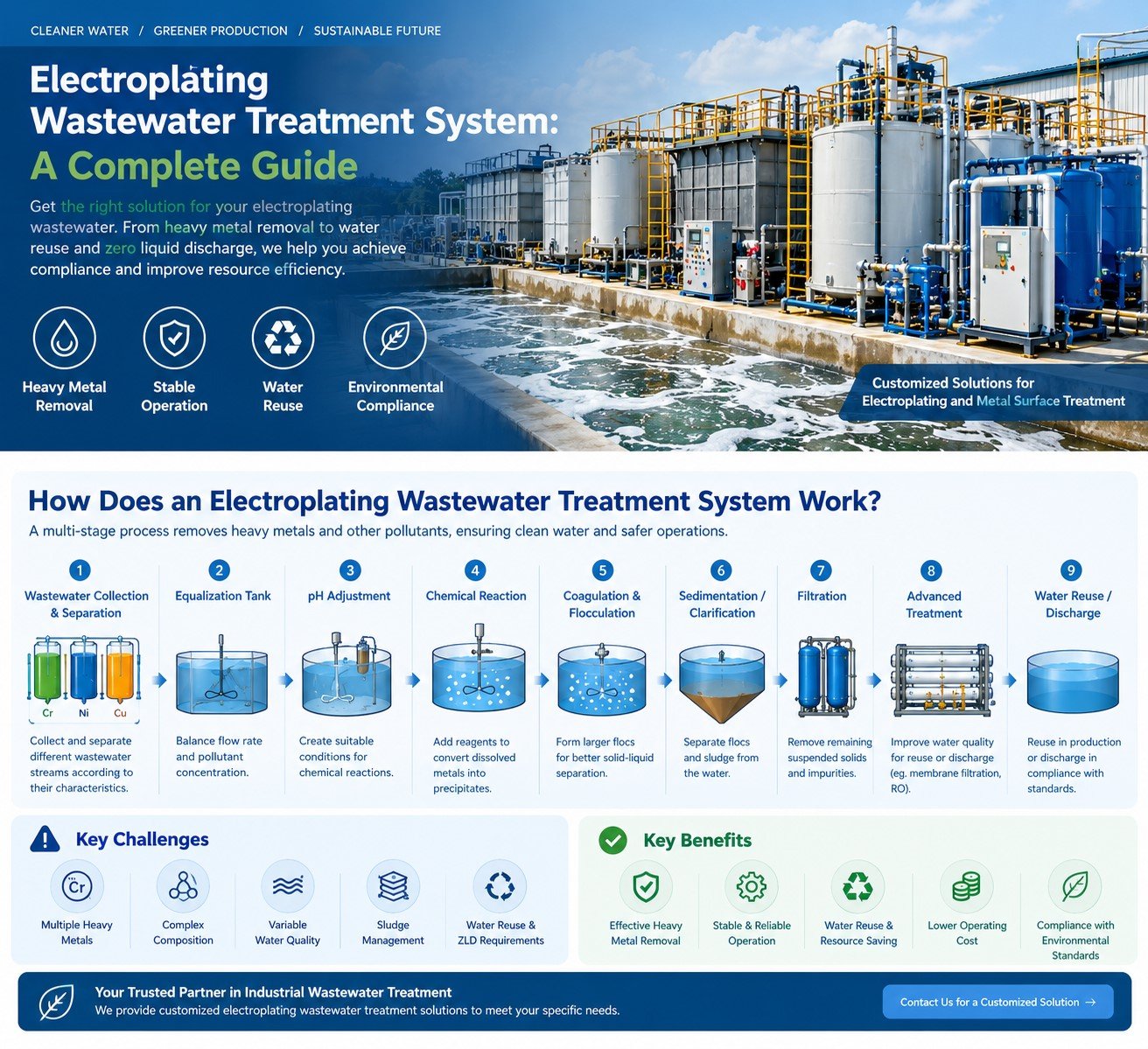

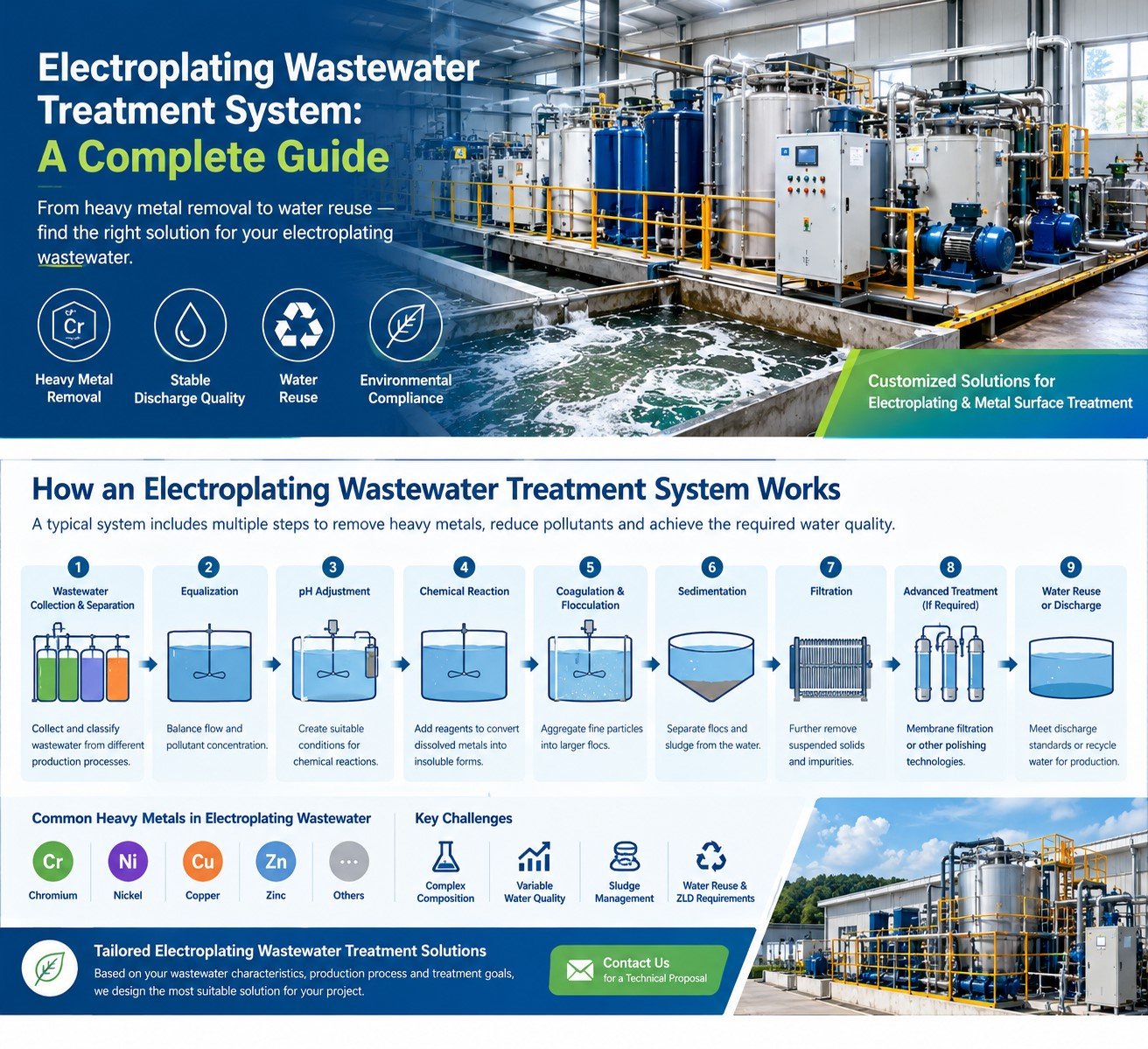

4. How Does an Electroplating Wastewater Treatment System Work?

A typical treatment system can include several stages.

The exact configuration should be determined based on wastewater analysis, production conditions, flow rate and treatment objectives.

Step 1: Wastewater Collection and Separation

Different wastewater streams are collected through separate pipelines or collection tanks where appropriate.

For example:

Chromium Wastewater

Nickel Wastewater

Copper Wastewater

Other Metal-Containing Wastewater

Separating wastewater at the source can help improve process control and make subsequent chemical treatment more targeted.

Step 2: Equalization

Collected wastewater may be transferred to an equalization tank.

The main purpose of equalization is to balance variations in:

· Flow rate

· Pollutant concentration

· pH

· Production operating conditions

An equalization tank can provide a more stable feed to downstream treatment equipment.

This is particularly useful for factories where wastewater generation varies during different production periods.

Step 3: pH Adjustment

pH adjustment is an important part of many heavy metal wastewater treatment processes.

Chemical reactions used for metal removal depend on wastewater chemistry and operating conditions.

The treatment system may therefore include:

· pH monitoring

· Acid dosing

· Alkali dosing

· Automatic chemical dosing

· Mixing equipment

The actual operating range should be established through wastewater analysis and process testing rather than using one fixed value for every project.

Step 4: Chemical Reaction

Appropriate treatment chemicals are added according to the wastewater characteristics.

The objective is to convert dissolved pollutants into forms that can be more effectively separated from the water.

A typical sequence is:

Dissolved Metals → Chemical Reaction → Metal-Containing Precipitates → Solid-Liquid Separation

The chemical selection and dosage depend on the specific metals, concentrations and other wastewater characteristics.

Step 5: Coagulation and Flocculation

After chemical reaction, fine particles may remain suspended in the wastewater.

Coagulation and flocculation help combine smaller particles into larger flocs.

These larger flocs can then be separated more effectively through sedimentation or other solid-liquid separation methods.

A typical process is:

Chemical Reaction → Coagulation → Flocculation → Sedimentation

Step 6: Sedimentation and Solid-Liquid Separation

The flocs generated during treatment are separated from the water.

Depending on the project, equipment may include:

· Sedimentation tanks

· Clarifiers

· Inclined plate separators

· Filtration equipment

· Other solid-liquid separation equipment

The separated sludge contains concentrated pollutants and requires appropriate downstream handling.

Step 7: Filtration

Filtration can be used after sedimentation to further reduce remaining suspended particles.

Depending on the required water quality, different filtration technologies may be considered.

Filtration can also provide important pretreatment for downstream advanced treatment systems.

Step 8: Advanced Treatment

When higher treated-water quality is required, advanced treatment can be added after conventional physicochemical treatment.

Possible technologies may include:

· Membrane filtration

· Reverse osmosis

· Other polishing processes

· Water recovery systems

The appropriate technology depends on the required water quality and intended application.

Advanced treatment should normally be considered as part of the complete treatment system rather than as an isolated piece of equipment.

Step 9: Water Reuse or Discharge

After treatment, the water can be directed toward the required final destination.

Depending on the project:

Treated Water → Discharge

or

Treated Water → Advanced Treatment → Water Reuse

For factories aiming to reduce freshwater consumption, water reuse can be an important part of the overall wastewater management strategy.

5. Typical Electroplating Wastewater Treatment Process

A typical process can be summarized as follows:

Electroplating Wastewater

↓

Wastewater Classification & Separate Collection

↓

Equalization

↓

pH Adjustment

↓

Chemical Reaction

↓

Coagulation & Flocculation

↓

Sedimentation / Clarification

↓

Filtration

↓

Advanced Treatment, If Required

↓

Water Reuse or Discharge

↓

Sludge Treatment & Disposal

The actual process flow should be customized according to the wastewater characteristics and customer's treatment objectives.

6. How Are Different Heavy Metals Treated?

Different electroplating processes can generate different heavy metals.

Chromium Wastewater

Chromium-containing wastewater may require dedicated treatment depending on the form and concentration of chromium present.

In some applications, chromium wastewater is collected separately before further chemical treatment and precipitation.

The exact process should be determined through wastewater analysis and process testing.

Nickel Wastewater

Nickel can be present in wastewater generated by nickel plating and related surface treatment processes.

Chemical precipitation and solid-liquid separation are commonly considered in treatment systems for nickel-containing wastewater.

Copper Wastewater

Copper-containing wastewater may originate from copper plating and other metal surface treatment processes.

Treatment conditions should be selected according to copper concentration, wastewater chemistry and the required treated-water quality.

Mixed Heavy Metal Wastewater

Some factories generate wastewater containing several heavy metals.

In these cases, the treatment system may combine separate collection, chemical treatment and downstream solid-liquid separation.

For complex production lines, wastewater classification at the source can make the overall treatment process easier to control.

7. What Equipment Is Included in an Electroplating Wastewater Treatment System?

A complete system may contain multiple types of equipment.

Equalization Tank

Used to balance wastewater flow and quality before downstream treatment.

pH Adjustment Tank

Provides controlled chemical dosing and mixing for pH adjustment.

Reaction Tank

Provides suitable conditions for chemical reactions and pollutant removal.

Coagulation and Flocculation Tanks

Used to promote the formation of larger flocs for improved solid-liquid separation.

Sedimentation Tank

Separates settled flocs and sludge from treated water.

Filtration Equipment

Provides additional removal of suspended solids and other remaining particles.

Chemical Dosing System

Automatically or manually adds treatment chemicals according to process requirements.

Sludge Dewatering Equipment

Reduces the water content of generated sludge and facilitates subsequent handling.

Advanced Treatment Equipment

Membrane or other polishing technologies may be added when higher water quality or water reuse is required.

Control System

Automatic control can be used to monitor and regulate key operating conditions such as pH, dosing and system operation.

8. When Is Water Reuse Required?

Not every electroplating factory requires the same level of water recovery.

Some facilities only need wastewater treatment before discharge.

Others may want to reuse treated water in production.

Water reuse can help factories:

· Reduce freshwater consumption

· Reduce wastewater discharge

· Improve water resource management

· Increase overall water recovery

A typical water reuse process may be:

Electroplating Wastewater

↓

Physicochemical Treatment

↓

Sedimentation

↓

Filtration

↓

Advanced Treatment

↓

Recovered Water

↓

Production Reuse

The required treatment level depends on the intended reuse application.

9. What Is Zero Liquid Discharge for Electroplating Wastewater?

Zero Liquid Discharge (ZLD) is a wastewater management approach designed to minimize or eliminate liquid wastewater discharge from a facility.

For electroplating factories with strict water management requirements, a ZLD system may combine conventional wastewater treatment with advanced water recovery and concentration technologies.

A simplified process can be:

Electroplating Wastewater

↓

Pretreatment

↓

Heavy Metal Removal

↓

Filtration / Advanced Treatment

↓

Water Recovery

↓

Concentration / Evaporation

↓

Recovered Water + Concentrated Residuals

ZLD is a project-specific solution. Whether it is technically and economically appropriate depends on wastewater characteristics, recovery targets, energy requirements, local conditions and the customer's objectives.

10. How to Select an Electroplating Wastewater Treatment System

Choosing wastewater treatment equipment based only on wastewater volume is not recommended.

A professional system design should consider several factors.

1. Wastewater Flow Rate

Provide:

· Average daily wastewater volume

· Peak wastewater flow

· Operating hours

· Production schedule

2. Wastewater Composition

A wastewater analysis should ideally include the major pollutants relevant to the production process.

3. Production Process

The treatment system should be designed according to the actual electroplating processes and chemicals used.

4. Required Treated-Water Quality

The required outlet quality will influence the treatment process and equipment selection.

5. Water Reuse Requirements

If the customer wants to reuse treated water, additional treatment may be required.

6. Installation Conditions

Available space, indoor or outdoor installation, climate, electrical supply and existing infrastructure can all influence equipment design.

7. Future Expansion

For factories planning to increase production, future wastewater volume should be considered during system design.

11. Why Customized Design Matters

There is no universal electroplating wastewater treatment system that can provide the same process configuration for every factory.

Two electroplating factories may have completely different wastewater characteristics because of differences in:

· Plating processes

· Chemicals

· Metal types

· Production capacity

· Wastewater flow

· Discharge requirements

· Water reuse targets

Therefore, the treatment system should be designed according to the actual project.

A customized solution may involve different combinations of:

Source Separation + Physicochemical Treatment + Filtration + Advanced Treatment + Water Reuse + Concentration

The goal is to create a treatment process that is technically suitable for the wastewater while also considering operation, maintenance and overall project cost.

12. Electroplating Wastewater Treatment for Metal Surface Treatment Industries

Electroplating wastewater treatment is not limited to conventional plating factories.

Similar treatment requirements may occur in industries such as:

· Metal surface treatment

· Metal finishing

· Gravure plate roller manufacturing

· Printed circuit board manufacturing

· Hardware manufacturing

· Automotive components

· Machinery manufacturing

· Electronic components

· Other metal processing industries

Each application should be evaluated according to its specific wastewater characteristics.

13. Our Electroplating Wastewater Treatment’s solutions

We provide industrial wastewater treatment solutions for electroplating and metal surface treatment applications.

Our approach focuses on matching the treatment process with the customer's actual wastewater characteristics and treatment objectives.

Depending on the project, the solution may include:

· Wastewater classification and separate collection

· Equalization

· pH adjustment

· Chemical reaction

· Coagulation and flocculation

· Sedimentation

· Filtration

· Sludge treatment

· Advanced treatment

· Water reuse

· Concentration and evaporation for specific applications

For projects with complex wastewater, the treatment process can be configured according to the different pollutant characteristics of each wastewater stream.

14. What Information Should You Provide for a Wastewater Treatment Proposal?

If you are looking for an electroplating wastewater treatment system, providing basic project information can help engineers evaluate the appropriate solution.

Recommended information includes:

Wastewater Information

· Wastewater flow rate

· Wastewater analysis

· Heavy metal types

· Pollutant concentrations

· pH

· Other relevant wastewater parameters

Production Information

· Electroplating process

· Main chemicals used

· Production capacity

· Operating hours

· Number of wastewater streams

Project Requirements

· Required discharge quality

· Water reuse target

· ZLD requirement, if applicable

· Available installation area

· Site location

· Power supply requirements

The more complete the project information, the more accurately the treatment process and equipment can be evaluated.

Conclusion

An electroplating wastewater treatment system is a combination of treatment processes and equipment designed to manage the complex wastewater generated by electroplating and metal surface treatment operations.

A typical system may include:

Separate Collection → Equalization → pH Adjustment → Chemical Reaction → Coagulation & Flocculation → Sedimentation → Filtration → Advanced Treatment → Discharge or Water Reuse

For projects requiring higher water recovery, additional technologies such as membrane treatment or evaporation may be considered.

The right solution depends on the actual wastewater characteristics, production process, flow rate, required treated-water quality and water reuse objectives.

For this reason, a customized engineering approach is generally more appropriate than selecting a standard system based only on wastewater volume.

Looking for an Electroplating Wastewater Treatment System?

If your factory generates wastewater containing chromium, nickel, copper, zinc or other heavy metals, we can evaluate your project requirements and develop a suitable treatment configuration.

Send us your wastewater analysis, flow rate, production process and treatment requirements to discuss a customized wastewater treatment solution.
