How to Remove Heavy Metals from Electroplating Wastewater

Electroplating wastewater can contain heavy metals and chemical pollutants generated during plating, rinsing, cleaning and other metal surface treatment processes. Depending on the production line and chemicals used, common pollutants may include chromium, nickel, copper, zinc and other dissolved metals.

Removing these pollutants effectively is an important challenge for electroplating and metal finishing facilities.

However, there is no single wastewater treatment method suitable for every electroplating factory. The most appropriate solution depends on the wastewater composition, metal concentrations, pH, wastewater flow rate and the final treatment objective.

In this article, we explain the main methods used for heavy metal removal from electroplating wastewater and the key factors to consider when selecting an industrial wastewater treatment system.

1. Understand the Wastewater Before Selecting a Treatment Process

The first step in heavy metal wastewater treatment is understanding what is actually present in the wastewater.

Electroplating wastewater from different processes can have significantly different characteristics. For example, a factory may generate separate wastewater streams containing:

· Chromium

· Nickel

· Copper

· Zinc

· Acids or alkalis

· Suspended solids

· Organic additives

The treatment process should therefore be designed based on actual wastewater data.

Important information includes:

· Wastewater source

· Wastewater flow rate

· Type of metal pollutants

· Heavy metal concentration

· pH

· COD and other relevant parameters

· Production operating hours

· Required discharge quality

· Water reuse requirements

A wastewater analysis is especially important when selecting a treatment solution. Choosing equipment based only on daily wastewater volume may not provide enough information for proper process design.

2. Separate Different Wastewater Streams at the Source

One of the important strategies in electroplating wastewater treatment is source separation.

Wastewater containing different pollutants should be collected separately when the production process and treatment requirements make this appropriate.

For example:

Chromium-containing wastewater
↓
Separate collection and treatment

Nickel-containing wastewater
↓
Separate collection and treatment

Copper-containing wastewater
↓
Separate collection and treatment

Separating wastewater streams can help prevent unnecessary mixing of different chemicals and provide better control over subsequent treatment processes.

It can also make it easier to select suitable chemical reactions and operating conditions for specific wastewater characteristics.

For complex electroplating facilities, the overall treatment design may therefore begin with:

Wastewater Classification → Separate Collection → Equalization → Targeted Treatment

rather than sending all wastewater directly into one treatment tank.

3. Adjust the pH to Create Suitable Treatment Conditions

pH control is commonly used in the treatment of heavy metal wastewater.

The solubility and chemical behavior of different metals can change under different pH conditions. Therefore, the wastewater may need to be adjusted to a suitable range before subsequent treatment.

A typical process may include:

Wastewater Collection

↓

pH Adjustment

↓

Chemical Reaction

↓

Metal Precipitation

The actual pH conditions should be determined according to the specific wastewater composition and selected treatment process.

For this reason, pH control equipment, chemical dosing systems and automatic monitoring may be incorporated into an electroplating wastewater treatment system.

4. Use Chemical Treatment to Convert Dissolved Metals into Removable Solids

Chemical treatment is widely used for heavy metal wastewater.

Appropriate chemicals can be added to create reactions that help transform dissolved pollutants into insoluble or more easily separable forms.

The general process may be:

Dissolved Heavy Metals in Wastewater

↓

Chemical Reaction

↓

Formation of Metal-Containing Precipitates

↓

Solid-Liquid Separation

↓

Treated Water

The specific chemicals and treatment conditions should be selected according to the actual wastewater analysis.

A professional treatment system should not simply use the same chemical dosing program for every project. Different wastewater streams may require different treatment conditions.

5. Improve Solid-Liquid Separation Through Coagulation and Flocculation

After chemical treatment, the wastewater may contain fine particles or metal-containing precipitates.

Coagulation and flocculation can help small particles combine into larger flocs, making them easier to separate from the water.

A typical treatment sequence may include:

Chemical Reaction

↓

Coagulation

↓

Flocculation

↓

Sedimentation or Clarification

↓

Sludge Separation

This process can help improve the separation of metal-containing solids from the treated water.

The generated sludge should also be considered as part of the overall treatment system, including sludge collection, dewatering, storage and disposal according to applicable project requirements.

6. Remove Metal-Containing Solids Through Sedimentation and Filtration

Once metal-containing particles and flocs have formed, they need to be separated from the treated water.

Depending on the project design, the system may use:

· Sedimentation tanks

· Clarifiers

· Inclined plate separators

· Filtration equipment

· Filter presses

· Other suitable solid-liquid separation equipment

Sedimentation is commonly used to remove heavier particles after chemical treatment.

Additional filtration can further reduce suspended solids and improve treated-water quality when required.

The actual equipment configuration depends on the treatment capacity, wastewater characteristics, available installation space and treatment objectives.

7. Consider Advanced Treatment for Higher Water Quality Requirements

For some projects, conventional physicochemical treatment may be followed by additional treatment.

This can be particularly relevant when the factory requires:

· Higher treated-water quality

· Water recycling

· Process water reuse

· Further reduction of remaining pollutants

· Zero liquid discharge objectives

Depending on the application, advanced treatment may include appropriate filtration, membrane technologies or other polishing processes.

The treatment process should be evaluated as a complete system rather than selecting advanced equipment without considering the quality of the upstream treated water.

In many industrial projects, effective pretreatment is an important foundation for stable downstream treatment and water reuse.

8. Water Reuse Can Be Considered After Heavy Metal Removal

After appropriate treatment, some industrial facilities may consider reusing treated wastewater.

Potential reuse applications depend on the treated-water quality and the customer's production requirements.

A general process may be:

Electroplating Wastewater

↓

Heavy Metal Removal

↓

Physical and Chemical Treatment

↓

Solid-Liquid Separation

↓

Filtration / Advanced Treatment

↓

Treated Water Storage

↓

Water Reuse

For projects with more demanding recovery requirements, further concentration or evaporation processes may also be evaluated.

The final solution should always be based on actual wastewater conditions and the required reuse water quality.

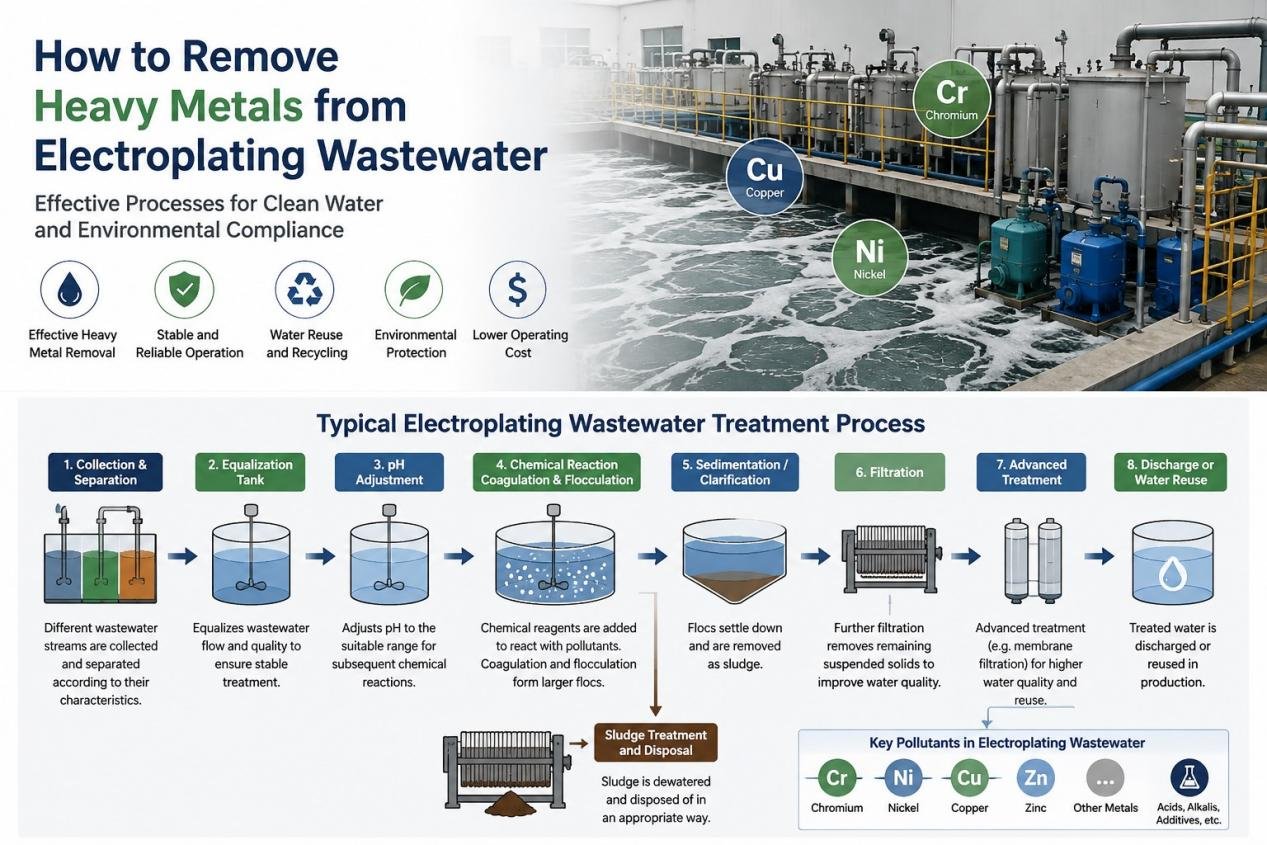

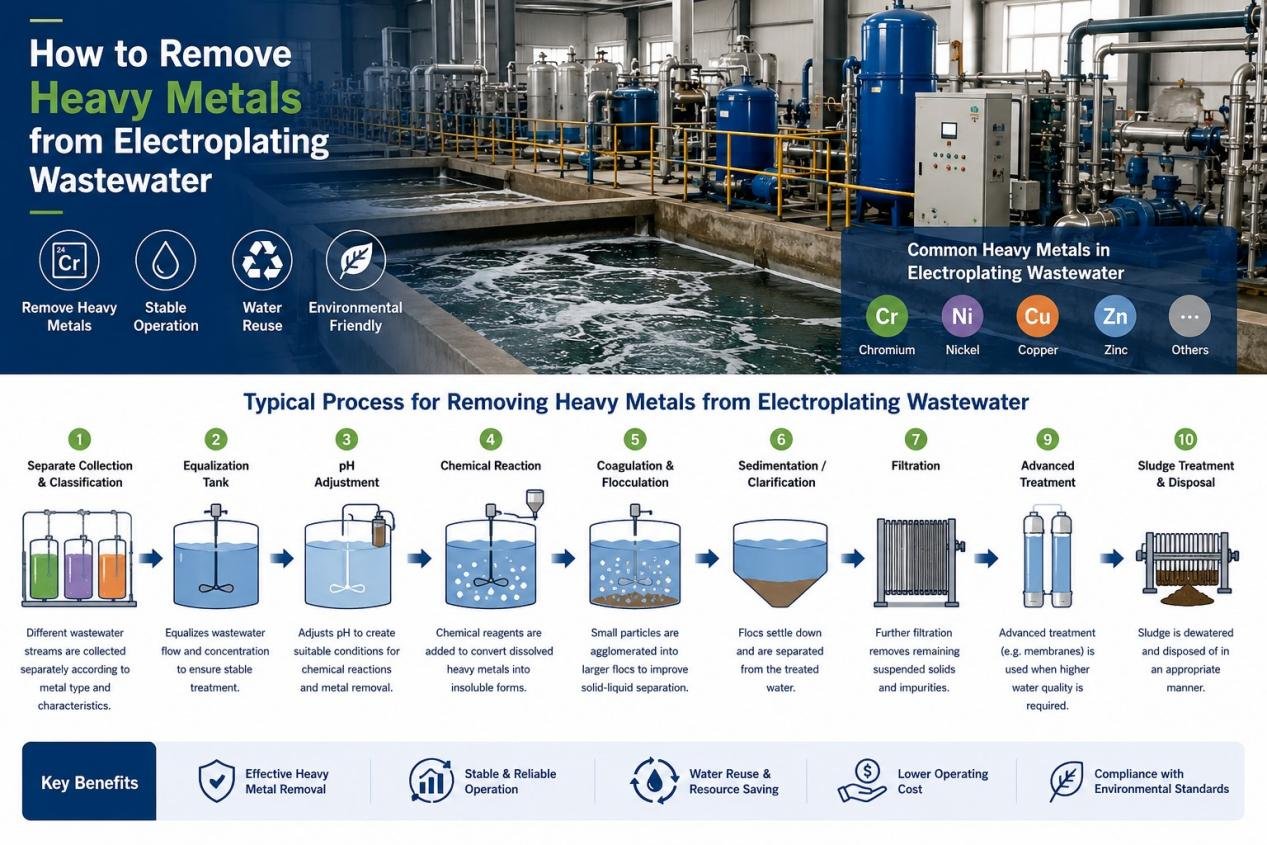

A Typical Heavy Metal Wastewater Treatment Process

A customized electroplating wastewater treatment process may follow the sequence below:

Different Wastewater Streams

        ↓

Separate Collection & Classification

        ↓

Equalization

        ↓

pH Adjustment

        ↓

Chemical Reaction

        ↓

Coagulation & Flocculation

        ↓

Sedimentation / Solid-Liquid Separation

        ↓

Filtration

        ↓

Advanced Treatment (If Required)

        ↓

Discharge or Water Reuse

For projects requiring additional water recovery:

Treated Water

        ↓

Advanced Water Recovery

        ↓

Reuse

        ↓

Concentration / Evaporation (If Required)

        ↓

Zero Liquid Discharge Objective

Not every project requires all of these treatment stages. The process should be selected according to actual project conditions.

Common Challenges in Heavy Metal Wastewater Treatment

Multiple Types of Heavy Metals

Electroplating wastewater may contain chromium, nickel, copper and other metals at the same facility.

Different wastewater streams may require different treatment approaches.

Fluctuating Wastewater Quality

Changes in production operations can affect wastewater flow and pollutant concentrations.

Proper collection and equalization can help improve the stability of downstream treatment.

Complex Chemical Composition

Some electroplating wastewater may contain acids, alkalis, additives or other substances that influence the treatment process.

Sludge Generation

Heavy metal removal through physicochemical treatment can generate metal-containing sludge.

Sludge treatment should therefore be included in the overall project design.

Water Reuse Requirements

Higher water recovery targets may require additional treatment beyond conventional wastewater treatment.

How to Choose the Right Heavy Metal Wastewater Treatment System

Before purchasing an electroplating wastewater treatment system, buyers should provide as much project information as possible.

The following information is particularly useful:

Wastewater Information

· Wastewater analysis report

· Heavy metal types and concentrations

· pH

· COD and other relevant parameters

· Daily and hourly wastewater volume

Production Information

· Electroplating process

· Main chemicals used

· Production operating hours

· Number of wastewater streams

Treatment Requirements

· Required discharge standard

· Water reuse target

· Zero liquid discharge requirement, if applicable

· Available installation area

· Local site conditions

This information allows the treatment system to be designed around the actual application rather than using a generic equipment configuration.

Customized Electroplating Wastewater Treatment Solutions

We provide customized industrial wastewater treatment solutions for electroplating, metal finishing and metal surface treatment applications.

Depending on the wastewater characteristics and project objectives, a solution may combine:

· Separate wastewater collection

· Equalization

· pH adjustment

· Chemical treatment

· Coagulation and flocculation

· Sedimentation

· Filtration

· Sludge dewatering

· Advanced treatment

· Water reuse

· Concentration or evaporation where required

The treatment process should be evaluated according to the actual wastewater analysis and customer requirements.

Conclusion

Removing heavy metals from electroplating wastewater requires more than simply installing a standard wastewater treatment unit.

An effective solution should consider:

Wastewater Characteristics → Source Separation → Chemical Treatment → Metal Precipitation → Solid-Liquid Separation → Filtration → Water Reuse or Discharge

The most suitable process depends on the specific metals present, wastewater composition, flow rate and final treatment objective.

For electroplating factories generating chromium, nickel, copper or other metal-containing wastewater, a customized treatment system can help address the different treatment requirements of each production process.
