Electroplating Wastewater Treatment: Process, Challenges and Solutions

Posted by HJ Environmental

Electroplating is widely used in industries such as automotive components, hardware, electronics and metal finishing to improve the corrosion resistance, wear resistance and appearance of metal products.

However, electroplating processes can generate wastewater containing heavy metals and other chemical pollutants. Depending on the production process, wastewater may contain chromium, nickel, copper, zinc and other metals, together with acids, alkalis, organic additives or other contaminants.

Effective electroplating wastewater treatment therefore requires more than a single treatment step. The treatment process should be selected according to the actual wastewater characteristics, production process, flow rate and required discharge or reuse standard.

In this article, we explain main characteristics of electroplating wastewater, common treatment processes, key challenges and how a customized treatment system can help manufacturers achieve stable wastewater treatment.

1. What Is Electroplating Wastewater?

Electroplating wastewater is generated from processes such as plating, rinsing, cleaning, pickling and other metal surface treatment operations.

The composition of the wastewater can vary significantly depending on the plating chemicals, metals being processed and production conditions.

Common pollutants may include:

· Chromium

· Nickel

· Copper

· Zinc

· Other heavy metals

· Suspended solids

· Acids and alkalis

· Organic compounds and chemical additives

Because different wastewater streams can have different chemical characteristics, source separation and proper wastewater classification can be important parts of an effective treatment strategy.

Research on electroplating wastewater also highlights that the presence of different additives and complexing substances can affect the performance of downstream treatment technologies.

2. How Does Electroplating Wastewater Treatment Work?

There is no single treatment process suitable for every electroplating factory.

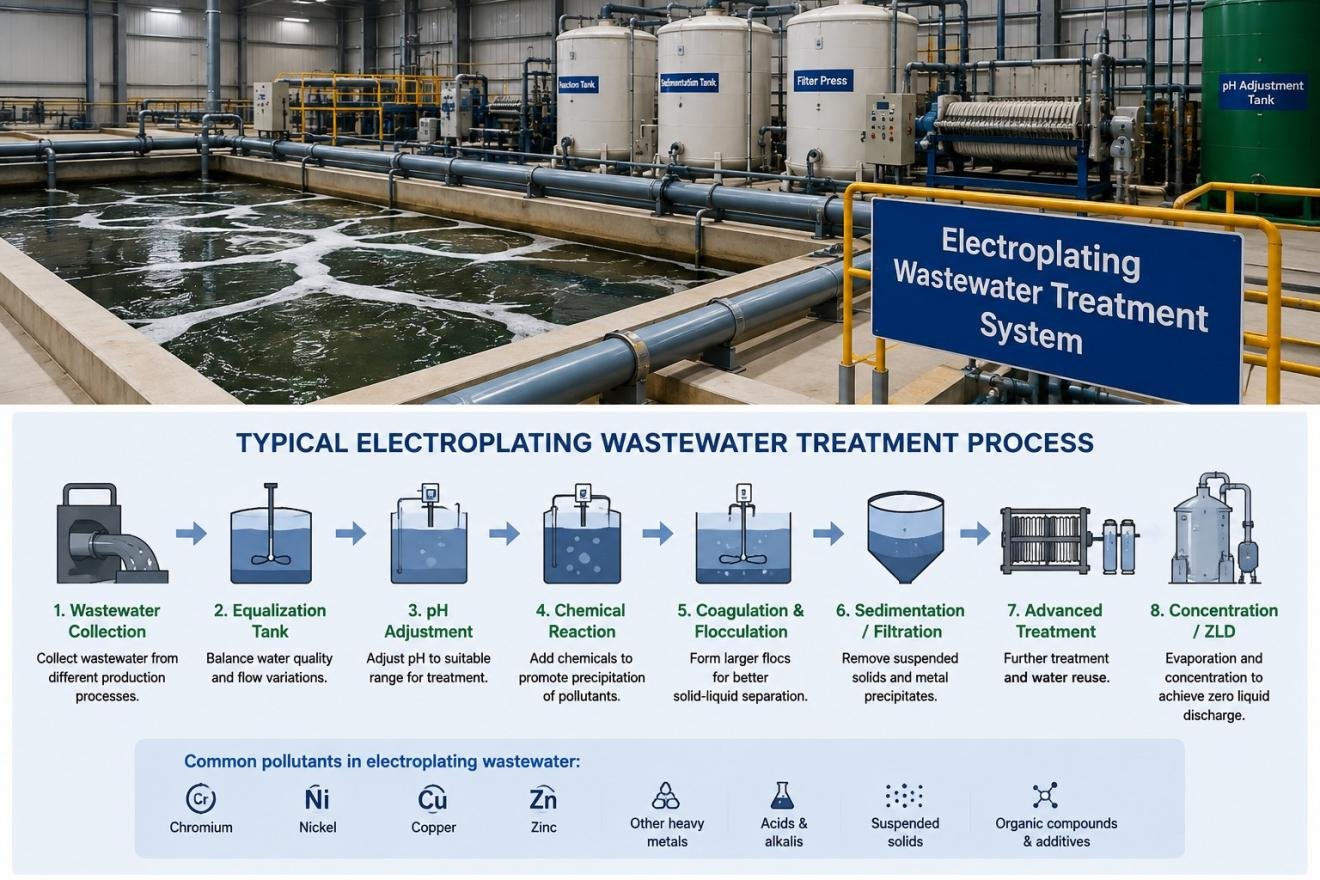

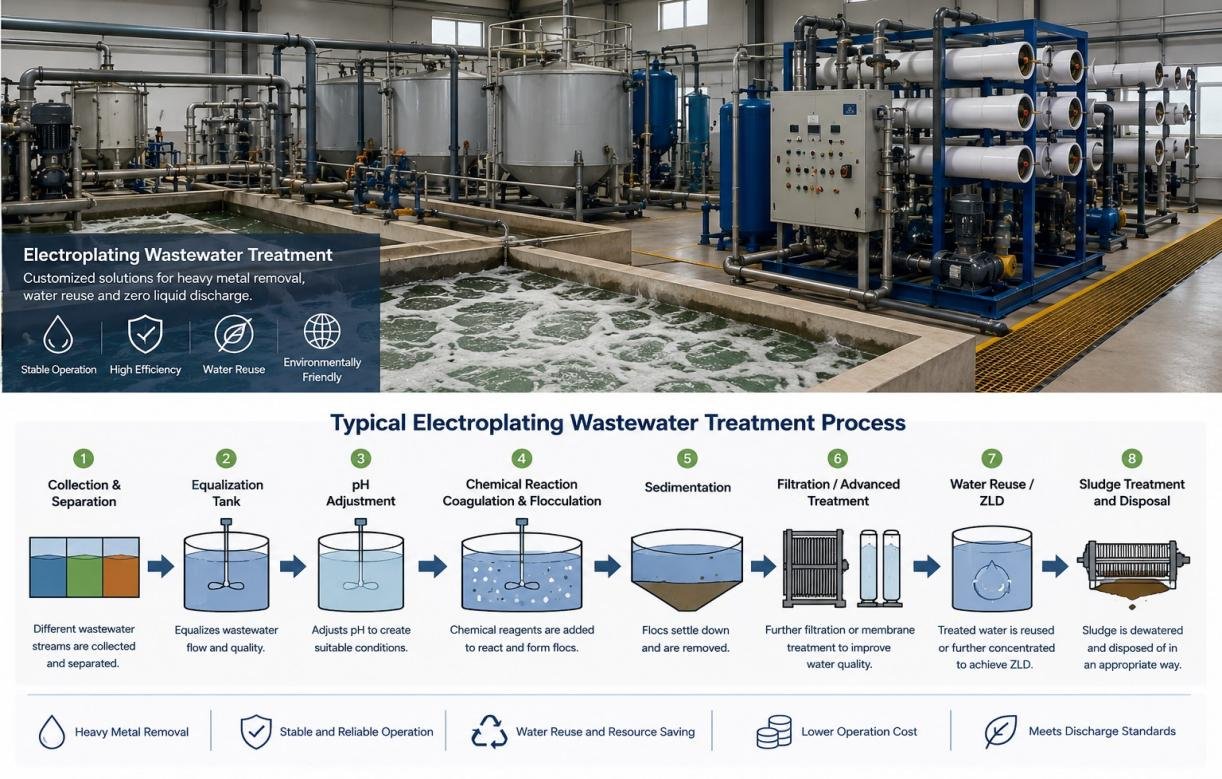

A typical electroplating wastewater treatment system may include several stages:

Step 1: Wastewater Collection and Equalization

Wastewater from different production processes is collected and, where appropriate, separated according to its characteristics.

An equalization tank helps balance variations in wastewater flow and pollutant concentration before subsequent treatment.

Step 2: pH Adjustment

pH adjustment is commonly used to create suitable conditions for subsequent chemical reactions and pollutant removal.

The required pH range depends on the target pollutants and selected treatment process.

Step 3: Chemical Reaction

Chemical reagents can be added to promote the transformation or precipitation of dissolved pollutants.

For metal-containing wastewater, chemical precipitation is a commonly used treatment approach. Research has demonstrated the use of precipitation and flocculation for removing metals such as chromium, nickel, copper and zinc from electroplating rinsewater.

Step 4: Coagulation and Flocculation

After chemical treatment, small particles can be agglomerated into larger flocs to improve solid-liquid separation.

Step 5: Sedimentation or Other Solid-Liquid Separation

The generated precipitates are separated from the treated water through suitable clarification, sedimentation or filtration equipment.

Step 6: Advanced Treatment and Water Reuse

Depending on the required treated-water quality, additional treatment such as membrane filtration or other polishing technologies may be considered.

For projects requiring water recycling, advanced treatment can allow suitable portions of the treated water to be returned to the production process.

Step 7: Concentration or Zero Liquid Discharge

Where zero liquid discharge (ZLD) is required, additional concentration and evaporation processes may be incorporated into the overall treatment system.

The appropriate ZLD configuration depends on wastewater composition, recovery targets, energy conditions and project requirements. Industrial research has demonstrated different membrane and evaporation-based approaches for electroplating wastewater reuse and ZLD applications.

3. Key Challenges in Electroplating Wastewater Treatment

Complex Wastewater Composition

Electroplating wastewater can contain multiple heavy metals and chemical additives. Different production lines may also generate wastewater with significantly different characteristics.

This makes wastewater analysis and process selection important before equipment sizing.

Heavy Metal Removal

Heavy metals such as chromium, nickel and copper require appropriate treatment processes to achieve the required discharge or reuse quality.

The treatment process should be selected according to the actual metal species, concentration and chemical conditions rather than relying on a standard configuration.

Variable Wastewater Quality

Production schedules, chemical bath conditions and rinsing operations can cause fluctuations in wastewater flow and pollutant concentration.

A properly designed collection and equalization system can help provide more stable conditions for downstream treatment.

Sludge Management

Chemical treatment can transfer dissolved pollutants into sludge. Therefore, sludge separation, dewatering, storage and compliant disposal should also be considered as part of the overall wastewater treatment solution.

Water Reuse and Zero Liquid Discharge

For factories facing water scarcity, rising water costs or strict discharge requirements, wastewater recycling and ZLD can become important project objectives.

However, ZLD should be evaluated based on the actual wastewater characteristics and overall project economics rather than treated as a universal requirement.

4. How to Choose an Electroplating Wastewater Treatment System

Before selecting equipment, overseas buyers should prepare basic information about the wastewater and production process.

Important design information includes:

· Wastewater flow rate

· Wastewater sources

· Production process

· Target pollutants

· Heavy metal concentrations

· pH

· COD and other relevant parameters

· Required discharge standard

· Water reuse requirements

· Available installation space

· Operating hours

· Local site conditions

A professional manufacturer should use this information to evaluate the appropriate treatment process and equipment configuration.

For complex electroplating wastewater, customized process design is generally more appropriate than selecting equipment based only on wastewater volume.

5. Our Electroplating Wastewater Treatment Solutions

We l provide customized industrial wastewater treatment systems for electroplating and metal surface treatment applications.

Depending on the customer’s wastewater characteristics and treatment objectives, the system can incorporate physical, chemical, filtration, membrane, water reuse or concentration technologies where appropriate.

Our solutions can be designed for applications including:

· Electroplating

· Metal finishing

· Metal surface treatment

· Printing plate manufacturing

· Pickling

· Anodizing

· Other industrial metal-processing applications

The treatment system can be engineered according to the customer’s actual wastewater data, required treatment capacity, discharge requirements and water reuse objectives.

6. From Wastewater Treatment to Water Reuse

For many industrial manufacturers, wastewater treatment is no longer only about meeting discharge requirements.

Water recovery and reuse can also help reduce freshwater consumption and improve overall resource efficiency.

Depending on the project conditions, a treatment system may combine conventional physicochemical treatment with filtration, membrane treatment or evaporation to achieve the required water recovery target.

For example, research into electroplating wastewater resource utilization has highlighted the potential for combining appropriate pretreatment with technologies aimed at water reuse and metal recovery.

7. Why Customized Design Matters

Two electroplating factories may have very different wastewater characteristics even when they manufacture similar products.

The type of plating process, chemicals used, rinse-water volume, metal concentration and discharge requirements can all influence the treatment process.

For this reason, We recommend evaluating:

Production Process → Wastewater Sources → Water Analysis → Treatment Process → Equipment Design → Installation & Commissioning

rather than simply selecting a standard wastewater treatment machine.

8. Conclusion

An effective electroplating wastewater treatment system should be designed around the actual wastewater characteristics and treatment objectives of each manufacturing facility.

Heavy metal removal, pH control, solid-liquid separation, sludge management, water reuse and zero liquid discharge may all need to be considered depending on the project.

For manufacturers looking for a customized solution, the first step is to provide reliable wastewater data and production information. This allows the treatment process and equipment configuration to be evaluated based on actual operating conditions.
