Chromic Acid Mist Treatment: How Chrome Plating Factories Can Improve Exhaust Control and Acid Recovery

For chrome plating and surface treatment manufacturers, controlling chromic acid mist is an important part of industrial exhaust treatment. During chrome plating and chromic acid anodizing processes, acidic mist can be generated from plating tanks and carried into the exhaust system. A properly designed chromic acid mist treatment system can help capture, remove and manage these emissions while providing opportunities for acid recovery.

What Is Chromic Acid Mist?

Chromic acid mist is a type of acidic aerosol that can be generated during chrome plating and other surface treatment processes using chromic acid.

Common applications include:

• Hard chrome plating

• Decorative chrome plating

• Chromic acid anodizing

• Electroplating

• Metal surface finishing

Because different production lines have different plating tank sizes, exhaust volumes and process conditions, the exhaust treatment system should be designed according to the actual application rather than using a standard configuration for every factory.

Why Is Chromic Acid Mist Treatment Important?

For chrome plating factories, an effective exhaust treatment system serves several purposes.

1. Capture Mist at the Source

The first step is to capture chromic acid mist as close as possible to the plating tank. Properly designed exhaust hoods and ductwork help collect contaminated air before it spreads into the workshop.

2. Remove Acid Mist from Exhaust Air

After collection, the contaminated air can enter a dedicated chromic acid mist treatment system. Depending on the project requirements, the system may incorporate mist recovery, wet scrubbing and mist elimination technologies.

3. Reduce Chemical Loss

When the system is designed for chromic acid recovery, captured acid-containing liquid can potentially be collected for appropriate reuse or further management, depending on the customer's plating process and wastewater treatment requirements.

This can help factories make better use of process chemicals while reducing the amount of contaminants transferred to downstream wastewater treatment.

How Does a Chromic Acid Mist Scrubber and Recovery System Work?

A typical treatment configuration may include several stages:

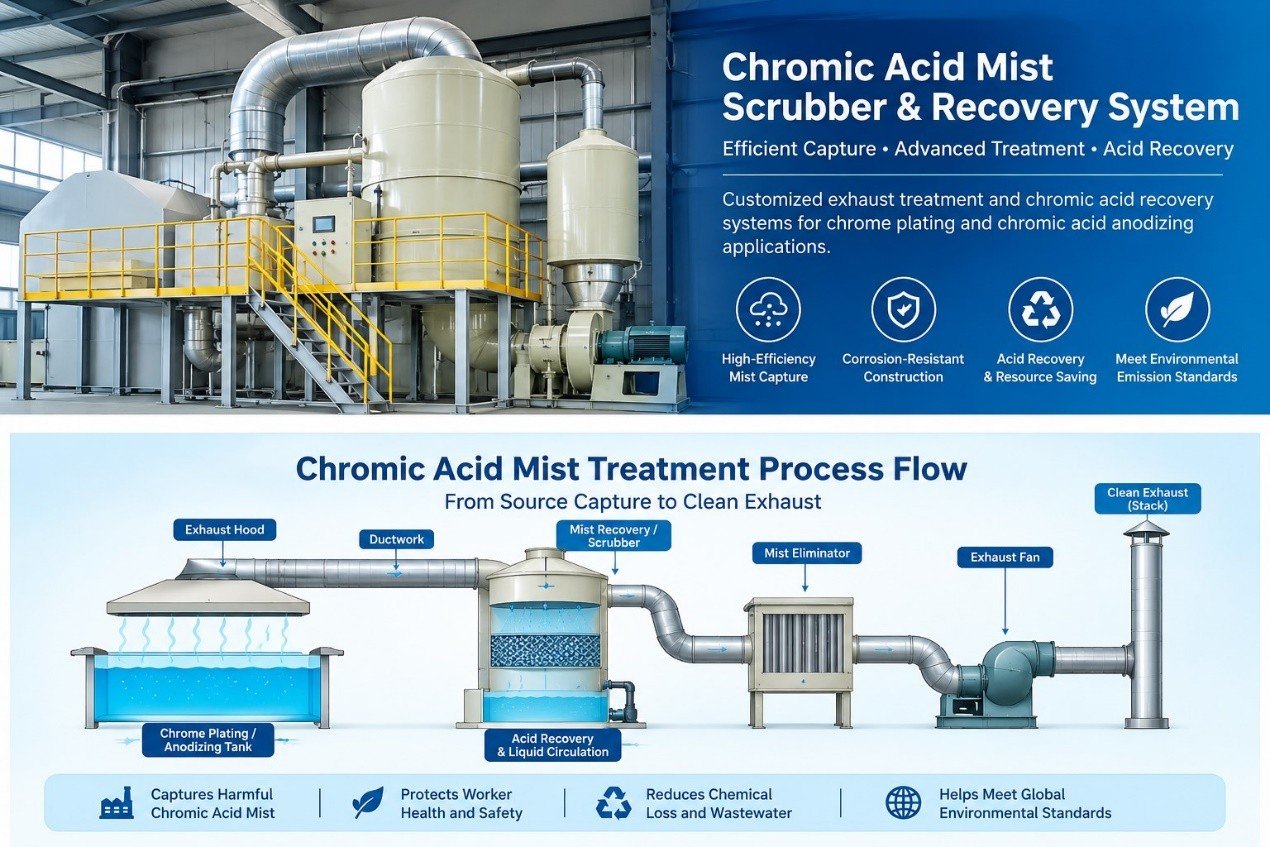

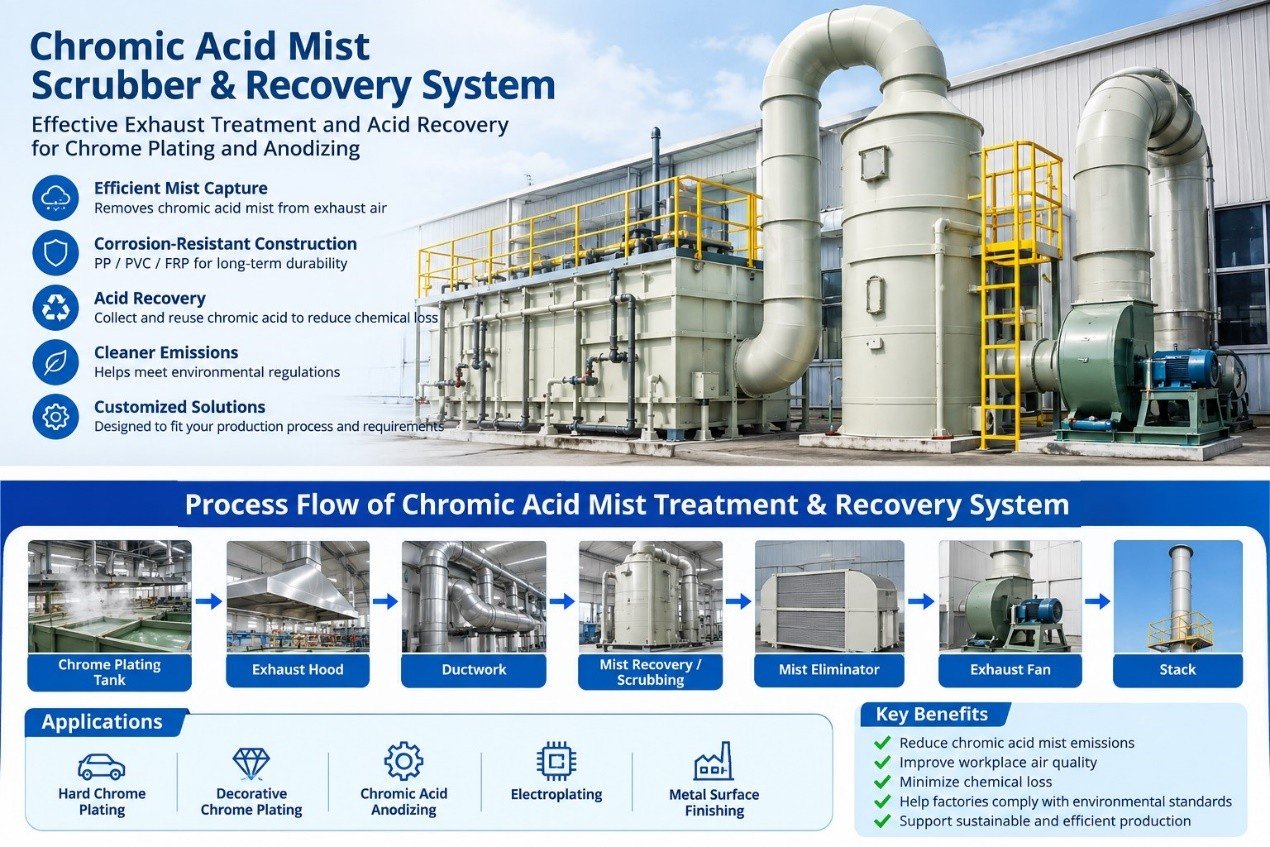

Chrome Plating Tank → Exhaust Hood → Ductwork → Mist Recovery / Scrubbing → Mist Eliminator → Exhaust Fan → Stack

The exact process configuration depends on factors such as the plating process, exhaust airflow, tank dimensions, chromic acid concentration, required emission performance and available installation space.

A customized design allows the equipment configuration to be matched to the actual operating conditions of the factory.

Key Features of a Customized Chromic Acid Mist Treatment System

For industrial applications, the following factors should be considered when selecting a chromic acid mist treatment system:

Corrosion-Resistant Construction

Components exposed to acidic conditions should be selected according to the process characteristics and required corrosion resistance.

Customized Airflow Capacity

The exhaust system should be sized according to the number and dimensions of plating tanks and the required air volume.

Efficient Mist Capture

Source capture is important for preventing chromic acid mist from spreading into the production area.

Mist Removal and Recovery

The treatment system can be configured to support both mist removal and chromic acid recovery according to the project requirements.

Flexible System Configuration

Existing plating lines and new production facilities may require different equipment layouts, ductwork and control configurations.

How to Choose the Right Chromic Acid Mist Treatment Equipment?

Before selecting a chromic acid mist scrubber or recovery system, factories should provide basic project information, including:

• Number of chrome plating tanks

• Plating tank dimensions

• Type of plating process

• Exhaust airflow requirements

• Chromic acid concentration

• Existing exhaust system

• Required emission standards

• Available installation area

• Requirements for acid recovery

Based on this information, an environmental equipment manufacturer can evaluate the required exhaust collection and treatment configuration.

Customized Chromic Acid Mist Solutions from our factory

As an industrial environmental protection equipment manufacturer,

We provide customized exhaust gas treatment solutions for industrial applications.

For chrome plating and surface treatment facilities, our technical team can evaluate the process conditions and project requirements before developing the appropriate chromic acid mist collection, treatment and recovery configuration.

Rather than selecting equipment based only on a standard model, a project-specific approach helps ensure that the exhaust treatment system is better matched to the factory's production process, airflow requirements and installation conditions.

Looking for a Chromic Acid Mist Treatment System?

If your factory is planning a new chrome plating exhaust system or upgrading an existing chromic acid mist treatment system, you can send us your plating tank dimensions, exhaust airflow, process information and acid concentration.

Our engineering team can evaluate the application and provide a customized chromic acid mist scrubber and recovery solution for your project.
