How Does a Metal Surface Wastewater Treatment System Work?

If your factory performs electroplating, metal finishing, pickling, etching, cleaning or surface treatment, wastewater may contain heavy metals, acids, alkalis, suspended solids, oil and other process-related pollutants.

For this reason, a metal surface wastewater treatment system cannot be designed simply according to wastewater flow rate. The treatment process needs to consider the production process, wastewater characteristics, pollutants, discharge requirements and whether treated water will be reused.

A typical treatment system may include wastewater collection and separation, equalization, pH adjustment, chemical reaction, heavy metal precipitation, coagulation and flocculation, sedimentation, filtration and final polishing.

Depending on the wastewater characteristics and the customer's treatment objectives, additional technologies such as membrane treatment, evaporation or other advanced treatment processes may also be required.

In this guide, we explain how a metal surface wastewater treatment system works and what industrial buyers should consider when selecting treatment equipment.

1. Where Does Metal Surface Treatment Wastewater Come From?

Metal surface treatment wastewater is generated from different stages of the manufacturing process.

Common wastewater sources include:

Cleaning and Degreasing Wastewater

Before plating or surface treatment, metal parts are often cleaned or degreased to remove oil, grease, dirt and other contaminants.

The resulting wastewater may contain:

· Oil and grease

· Suspended solids

· Alkaline chemicals

· Cleaning agents

· Dissolved metals

Electroplating Rinse Water

Rinsing is one of the major wastewater sources in electroplating operations.

Depending on the plating process, rinse water may contain metals such as:

· Chromium

· Nickel

· Copper

· Zinc

· Cadmium

· Lead

· Tin

Electroplating processes can involve a range of metal coatings, including copper, nickel, chromium, zinc, tin, lead, cadmium and other metals.

Pickling and Etching Wastewater

Pickling and etching are commonly used to remove oxide layers, scale or unwanted material from metal surfaces.

These wastewater streams may have relatively high acidity or alkalinity and can contain dissolved metals.

Spent Process Solutions

Spent plating baths, chemical solutions and concentrated process wastewater can have much higher pollutant concentrations than ordinary rinse water.

These concentrated streams may require separate collection and treatment rather than being mixed directly with low-concentration wastewater.

Exhaust Scrubber Wastewater

Some metal finishing facilities use wet scrubbers to control acid mist or other exhaust emissions. The scrubber circulation water may gradually accumulate pollutants and require treatment or replacement.

2. What Pollutants Need to Be Removed?

The exact wastewater composition depends on the production process and chemicals used.

Common pollutants in metal surface treatment wastewater include:

The U.S. EPA identifies toxic metals and cyanide among pollutants associated with metal finishing and electroplating wastewater.

This is why wastewater analysis should be completed before selecting a treatment process.

3. How Does a Metal Surface Wastewater Treatment System Work?

A typical treatment process can be divided into several stages.

The exact configuration should be customized according to the wastewater characteristics.

Step 1: Wastewater Collection and Separation

The first step is to collect wastewater from different production processes.

Where appropriate, different wastewater streams should be separated according to their characteristics.

For example:

Chromium-containing wastewater → Separate collection

Cyanide-containing wastewater → Separate collection

Nickel/copper/zinc wastewater → Separate collection

Acid/alkali wastewater → Separate collection or controlled equalization

Wastewater segregation can allow specific pollutants to be treated before the streams are combined and can reduce the wastewater flow requiring treatment. EPA guidance specifically describes segregation as an important part of metal finishing wastewater treatment.

4. Equalization and Flow Control

After collection, wastewater may enter an equalization tank.

The purpose of equalization is to reduce fluctuations in:

· Flow rate

· Pollutant concentration

· pH

· Production-related wastewater characteristics

This helps provide a more stable wastewater condition for downstream chemical treatment.

For factories with batch production or significant variations between shifts, proper equalization can be particularly important for stable system operation.

5. pH Adjustment and Chemical Reaction

pH adjustment is one of the most important stages in heavy metal wastewater treatment.

Many dissolved metal ions can be converted into relatively insoluble metal hydroxides through chemical precipitation.

Alkaline chemicals such as lime or sodium hydroxide may be used depending on the wastewater and treatment design.

The general concept is:

Dissolved Metal Ions → Chemical Reaction → Insoluble Metal Compounds → Solid-Liquid Separation

EPA technical documents describe hydroxide precipitation followed by sedimentation or filtration as a commonly used treatment approach for dissolved metals in metal finishing wastewater.

However, the required pH and chemical dosage are not identical for every metal or wastewater stream.

This is why chemical testing and process design are important before finalizing the equipment configuration.

6. Chromium-Containing Wastewater May Require Pretreatment

Chromium wastewater requires special attention because chromium can exist in different chemical forms.

For wastewater containing hexavalent chromium, a chromium reduction process may be required before conventional precipitation.

The purpose is to convert hexavalent chromium into a form that can subsequently be removed through precipitation.

EPA guidance identifies chromium reduction as a pretreatment step where hexavalent chromium is present.

Therefore, a system designed for a chrome-plating application may have a dedicated chromium treatment stage rather than relying only on a general neutralization tank.

7. Cyanide-Containing Wastewater May Also Require Separate Treatment

Certain electroplating processes generate cyanide-containing wastewater.

Cyanide can also form complexes with metals, which may interfere with subsequent heavy metal precipitation.

Therefore, cyanide-containing wastewater may require a dedicated pretreatment process before common metal treatment.

EPA technical guidance identifies cyanide oxidation as a pretreatment technology for cyanide-bearing wastewater.

Important: The actual treatment process should always be selected according to the chemicals and pollutants present at the customer's facility.

8. Coagulation and Flocculation

After chemical reactions, very small particles may remain suspended in the wastewater.

Coagulation and flocculation can help combine these small particles into larger flocs.

A simplified process is:

Small particles → Coagulation → Flocculation → Larger flocs → Easier separation

This improves the efficiency of subsequent solid-liquid separation.

9. Sedimentation and Filtration

After precipitation and flocculation, the wastewater enters a solid-liquid separation stage.

Depending on the system design, this may include:

· Sedimentation tank

· Clarifier

· Lamella clarifier

· Sand filtration

· Multimedia filtration

· Other filtration equipment

The purpose is to separate the precipitated solids from the treated water.

EPA documentation describes clarification/sedimentation and filtration as established methods for removing precipitated metal solids from metal finishing wastewater.

The resulting sludge needs to be collected and managed according to the applicable local requirements.

10. Does Every Metal Surface Wastewater System Need Advanced Treatment?

No.

The required treatment process depends on the customer's wastewater and final treatment objective.

For some applications, a conventional physicochemical treatment system may be sufficient.

For other projects, additional treatment may be necessary to achieve stricter water quality requirements or water reuse objectives.

Possible advanced treatment technologies include:

· Membrane filtration

· Reverse osmosis

· Ion exchange

· Adsorption

· Advanced oxidation

· Evaporation

· Concentration technologies

The correct technology should be selected based on wastewater analysis and the required final water quality rather than simply adding more treatment equipment.

11. Water Reuse and Zero Liquid Discharge

Many metal processing factories are no longer concerned only with wastewater discharge.

They may also want to:

· Reduce freshwater consumption

· Reuse treated water

· Recover valuable water

· Reduce wastewater discharge

· Move toward Zero Liquid Discharge (ZLD)

In these applications, the treatment system may include additional polishing and water recovery processes.

A possible process can be:

Metal Surface Wastewater

↓

Separate Collection

↓

Equalization

↓

pH Adjustment

↓

Chemical Reaction & Precipitation

↓

Coagulation & Flocculation

↓

Sedimentation

↓

Filtration

↓

Advanced Treatment / RO

↓

Reclaimed Water

For projects requiring ZLD, additional concentration or evaporation equipment may be integrated after the main wastewater treatment process.

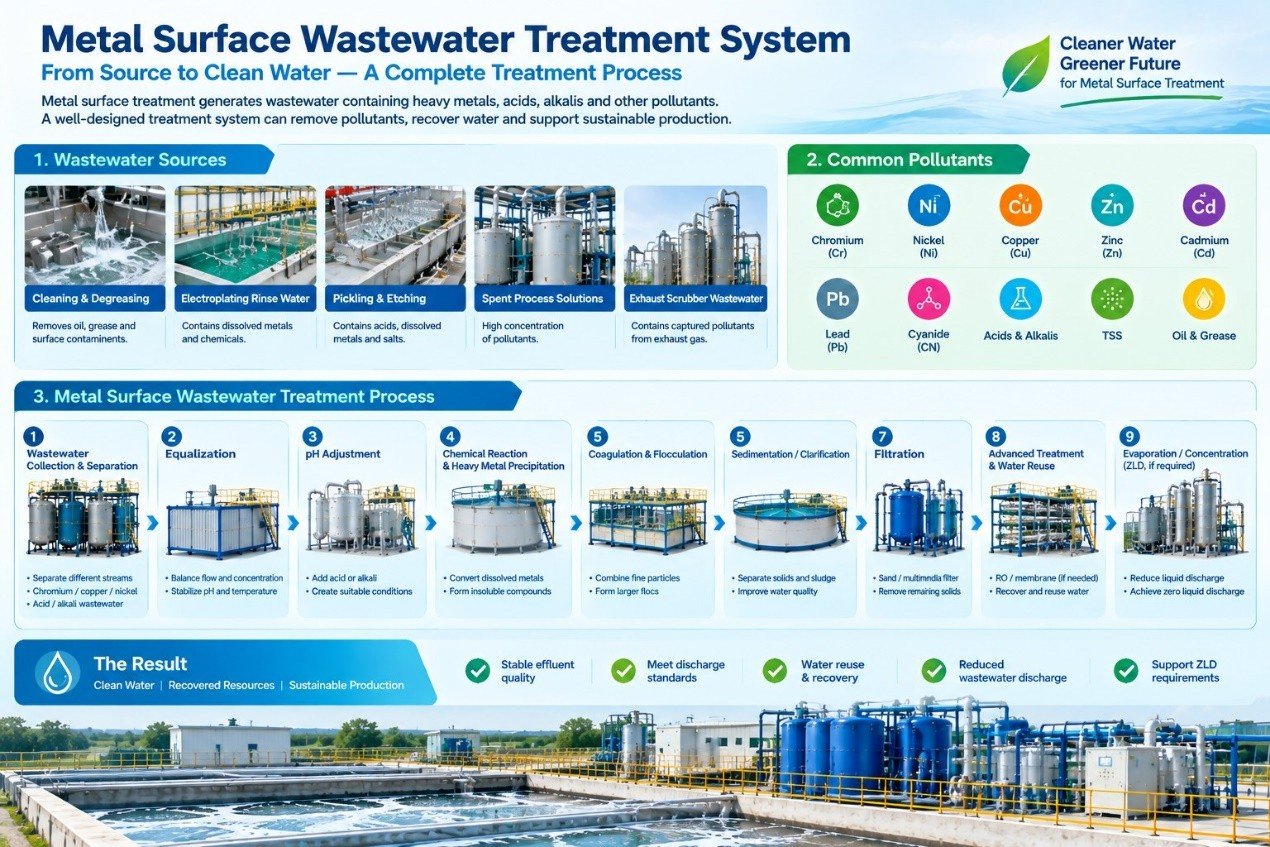

12. Typical Metal Surface Wastewater Treatment Process

A typical process can be summarized as:

Wastewater Sources

→ Cleaning / Degreasing

→ Electroplating Rinse Water

→ Pickling / Etching

→ Process Wastewater

↓

Separate Collection & Equalization

↓

Pretreatment

→ Chromium Reduction, if required

→ Cyanide Treatment, if required

→ Oil Removal, if required

↓

pH Adjustment

↓

Chemical Reaction & Heavy Metal Precipitation

↓

Coagulation & Flocculation

↓

Sedimentation / Clarification

↓

Filtration

↓

Advanced Treatment / Water Reuse

↓

Final Discharge or Reclaimed Water

↓

Evaporation / Concentration

→ When required for ZLD

This process is only a general framework. The actual treatment flow should be designed according to the customer's wastewater characteristics and treatment objectives.

13. What Equipment Is Included in a Metal Surface Wastewater Treatment System?

A complete system may include different equipment depending on the application.

Typical equipment can include:

Not every project requires all of these units.

The final equipment configuration depends on the wastewater composition, flow rate, required effluent quality, available space, operating conditions and water reuse requirements.

14. How to Choose the Right Metal Surface Wastewater Treatment System?

When comparing wastewater treatment equipment suppliers, do not select a system based only on treatment capacity.

A proper technical evaluation should consider at least the following information:

1. Wastewater Flow Rate

Provide:

· Average flow

· Peak flow

· Daily operating hours

· Production schedule

2. Wastewater Analysis

Where available, provide laboratory data for:

· pH

· COD

· TSS

· Chromium

· Nickel

· Copper

· Zinc

· Cadmium

· Lead

· Cyanide

· Oil & grease

· Other relevant pollutants

3. Production Process

Explain how the wastewater is generated.

For example:

Cleaning → Pickling → Plating → Rinsing → Passivation

The production process helps the equipment manufacturer understand the wastewater sources and potential variations.

4. Required Treatment Standard

The system should be designed according to the applicable local discharge or reuse requirements.

5. Water Reuse Requirement

Tell the supplier whether the treated water will be:

· Discharged

· Reused for rinsing

· Reused for production

· Used for utility purposes

· Further treated toward ZLD

6. Site Conditions

Useful information includes:

· Available installation area

· Indoor or outdoor installation

· Local climate

· Electrical supply

· Existing wastewater equipment

· Existing tanks or pipelines

15. Why Customized Design Matters

There is no single wastewater treatment process that is suitable for every metal surface treatment factory.

Two factories may both describe their wastewater as "electroplating wastewater," but their actual wastewater characteristics can be very different because of differences in:

· Plating metals

· Chemicals used

· Production processes

· Rinsing methods

· Production capacity

· Wastewater concentration

· Discharge requirements

· Water reuse objectives

For this reason, an experienced wastewater treatment equipment manufacturer should evaluate the wastewater and production process before recommending the final system configuration.

We design and manufacture customized industrial wastewater treatment systems for metal surface treatment and electroplating applications.

Our approach is based on the customer's actual wastewater characteristics, treatment objectives and site requirements rather than using a one-size-fits-all process.

Conclusion: How Does a Metal Surface Wastewater Treatment System Work?

A metal surface wastewater treatment system typically works through a combination of wastewater separation, equalization, pH adjustment, chemical reaction, heavy metal precipitation, coagulation, flocculation, sedimentation and filtration.

Depending on the wastewater characteristics, additional treatment such as chromium reduction, cyanide treatment, membrane filtration, water reuse or evaporation may be required.

The key is to match the treatment process with the actual wastewater.
