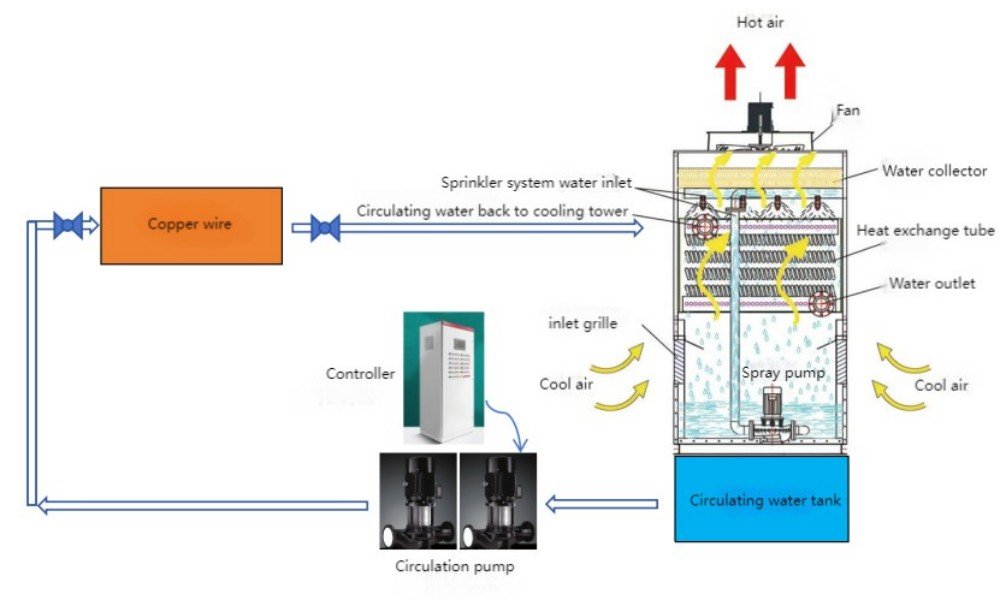

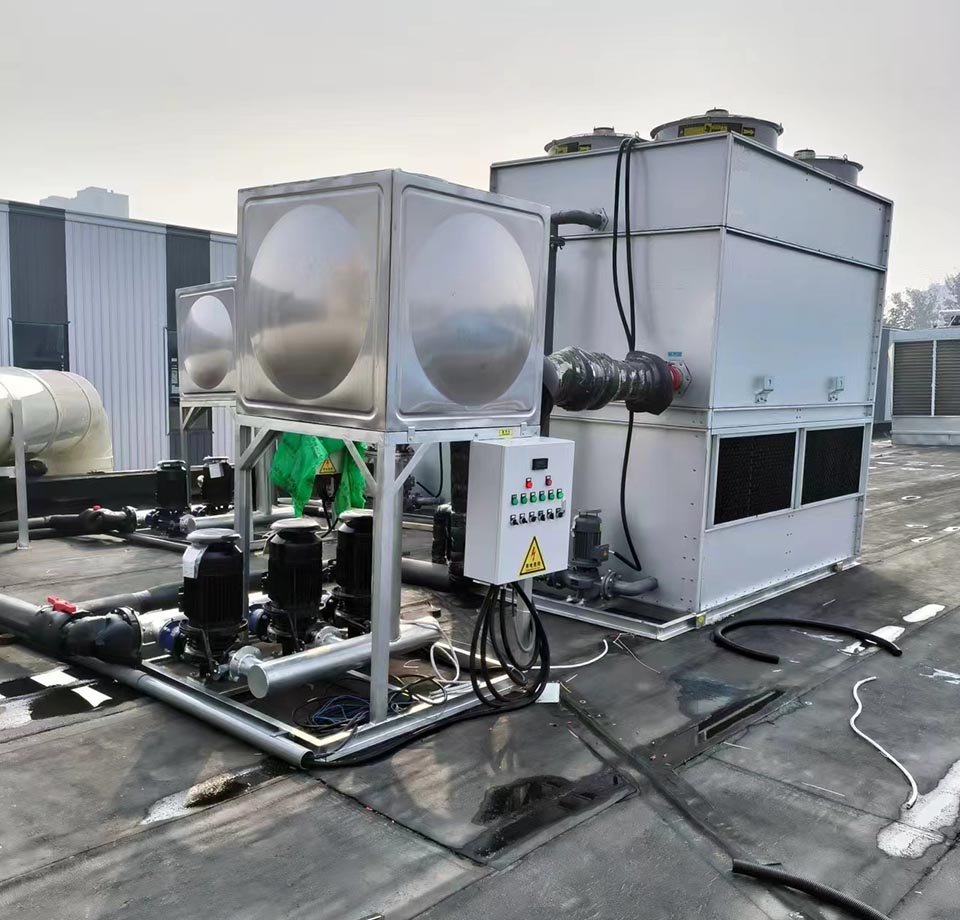

1. Cooling circulating water system process
The cooling water circulation system is divided into two sets of cooling water supply and circulating water return systems. Two sets of water supply pumps are connected in series on each water supply line. The water supply pressure and inverter are jointly controlled to ensure the start and stop of the circulating water pump and the constant circulating water pressure.

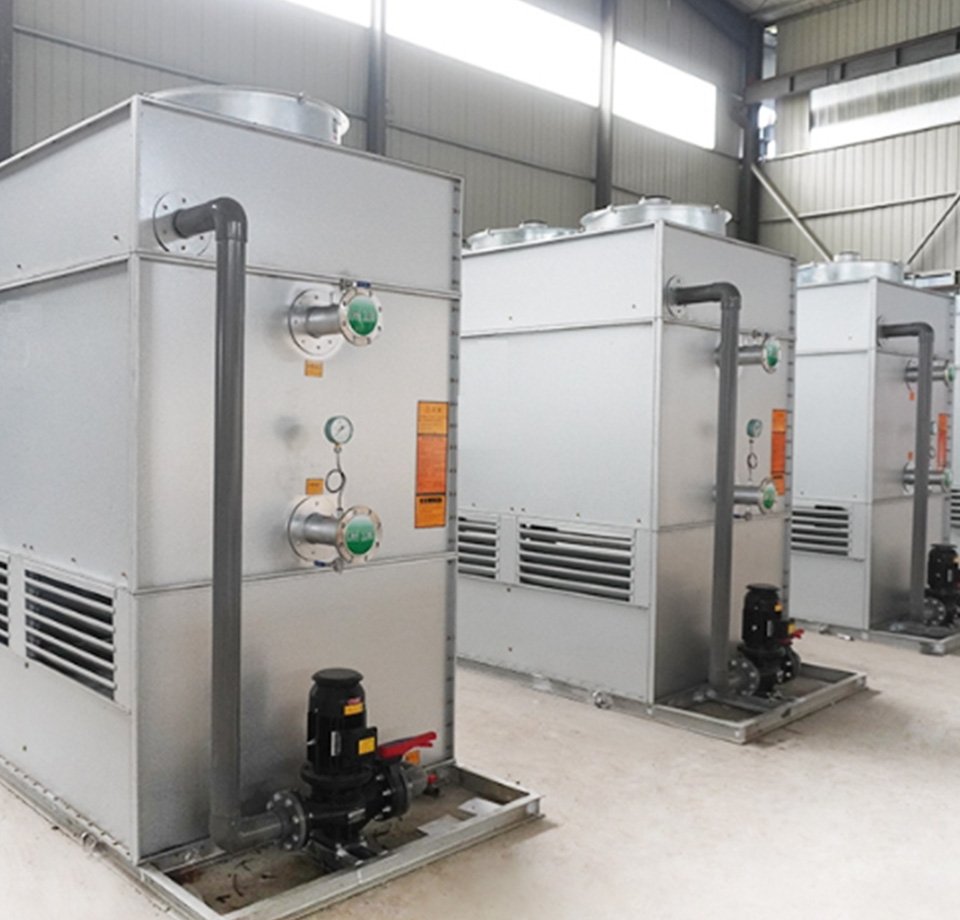

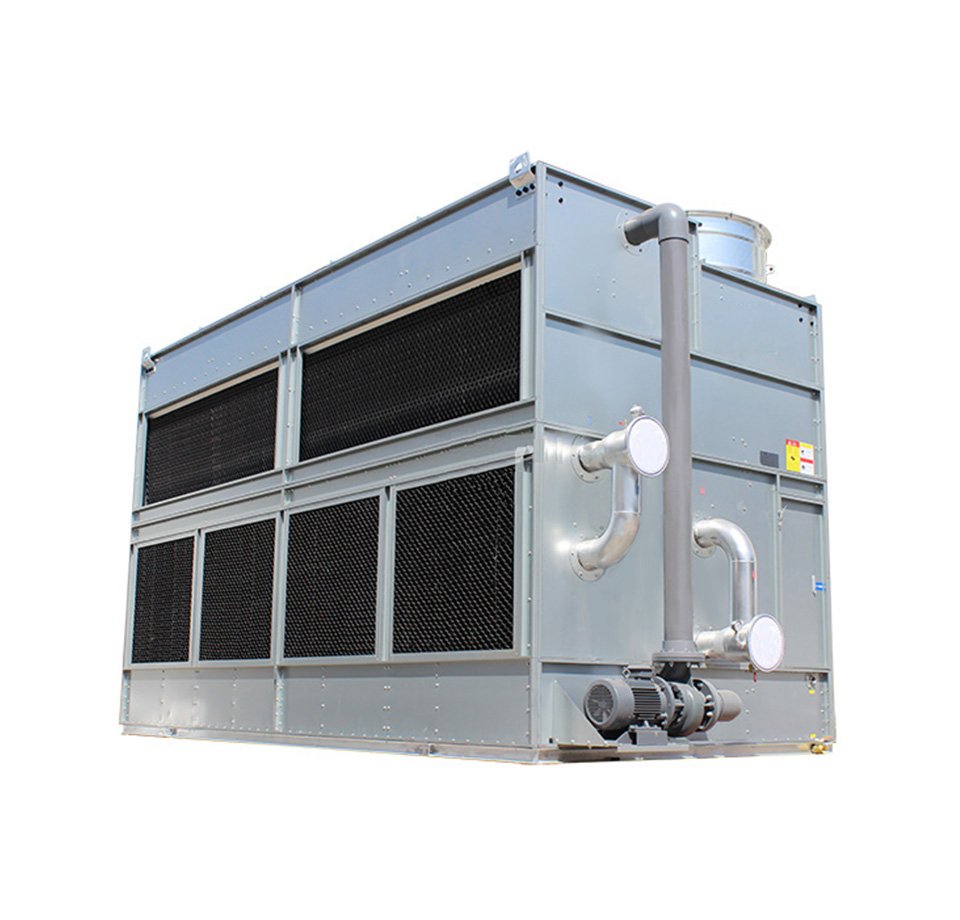

2. Main parameters of cooling tower
Model | KCN-100 | classification | Designation | Material | |
Cooling water volume | m3/h | 150 | Cooler system
| Cooler Coil | 304 stainless steel pipe diameter 19mm |
Cooler bracket | Galvanized profile | ||||
Cooling capacity | 500000Kcal/h | Pressure gauge | National standard, water inlet configuration | ||
Operating pressure | MPa | 0．2-0.6 | Cooling manifold | 304 Stainless Steel Pipe | |
Water inlet and outlet pipe diameter | Water Inlet （mm） | DN100 | Temperature measurement probe | 304 Stainless Steel PT100 | |
Water outlet （mm） | DN100 | Flange | 304, pressure resistance level 1.0Mpa | ||
Sewage outlet （mm） | DN32 |
Ball valve | Special ball valve | ||
Water filling port （mm） | DN25 | Float valve | |||
Fan
| Power (Kw) | 1.5 | Exhaust system | Fan | Protection grade IP55, insulation grade F |
Quantity (set) | 4 | Fan bracket mesh cover | Channel steel fan support frame and protective barrel | ||
Air volume (m³/h) | 18000 | Water collector | Reduce the rate of water bleaching, material PVC | ||
Spray pump
| Power (Kw) | 2.2 | Sprinkler system | Spray pump | IP55，F 级. |
Quantity (set) | 1 | Nozzle | Material: ABS, large diameter and large flow, not easy to scale, easy to disassemble and replace | ||
Flow (m³/h) | 100 | Bracket | Galvanized profile bracket | ||
Lift

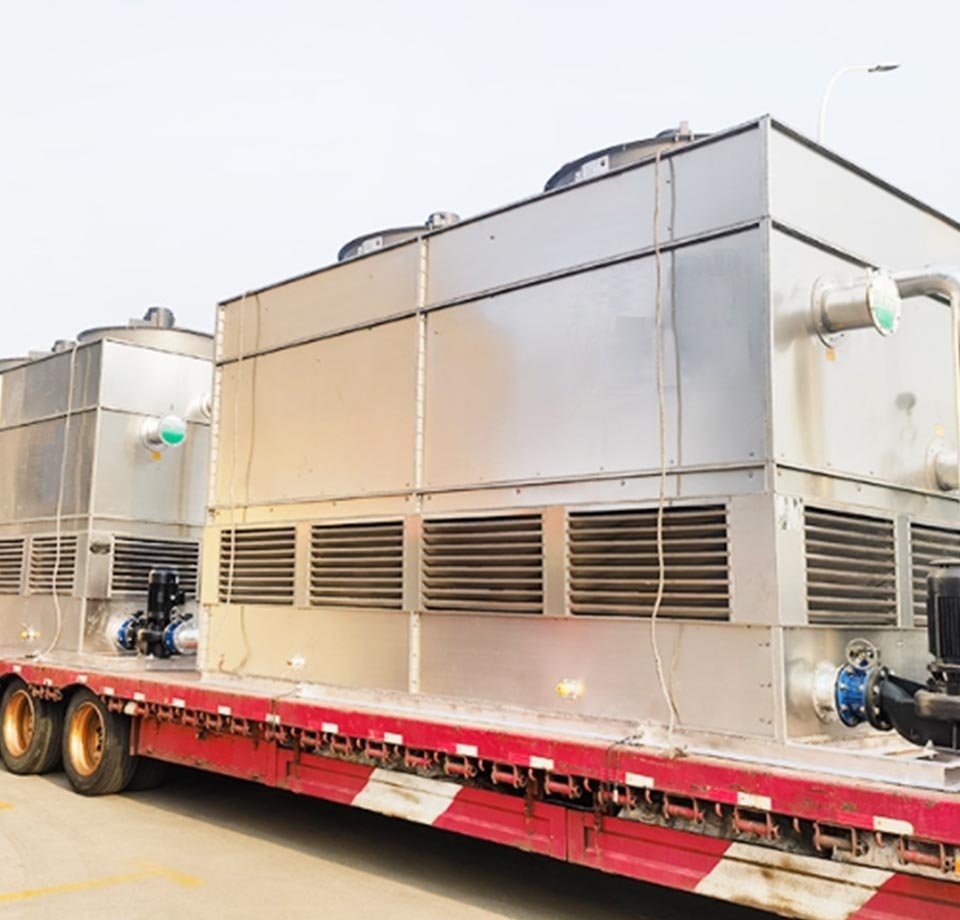

LX WX H（mm） | 6 | Spray pipe accessories | PVC pipe | ||
Host appearance | 2800*2000*2800 | shell | External panels | 2mm，Magnesium aluminum zinc plate | |
Shipping Weight | Net weight | 1800kg | Splicing screws | Dacromet screws and nuts | |
Operating weight | Complete Machine | 4000kg | Bottom bracket | Galvanized channel steel frame | |
Auxiliary machine
| Power (Kw) | Circulatory system | Water tank | ||
Quantity(P) | |||||
Flow (m³/h) | Base frame | Galvanized Channel Steel | |||
Lift （m） | Circulation pump | ||||
Electronic control system | Temperature display | Operation monitoring | Control System | Electric control box | Dust and water resistance level IP55 |
Low voltage | 380v，Zhengtai | ||||
Startup method | Direct Start | ||||
Temperature controller | Automatically control the fan according to the temperature | ||||
